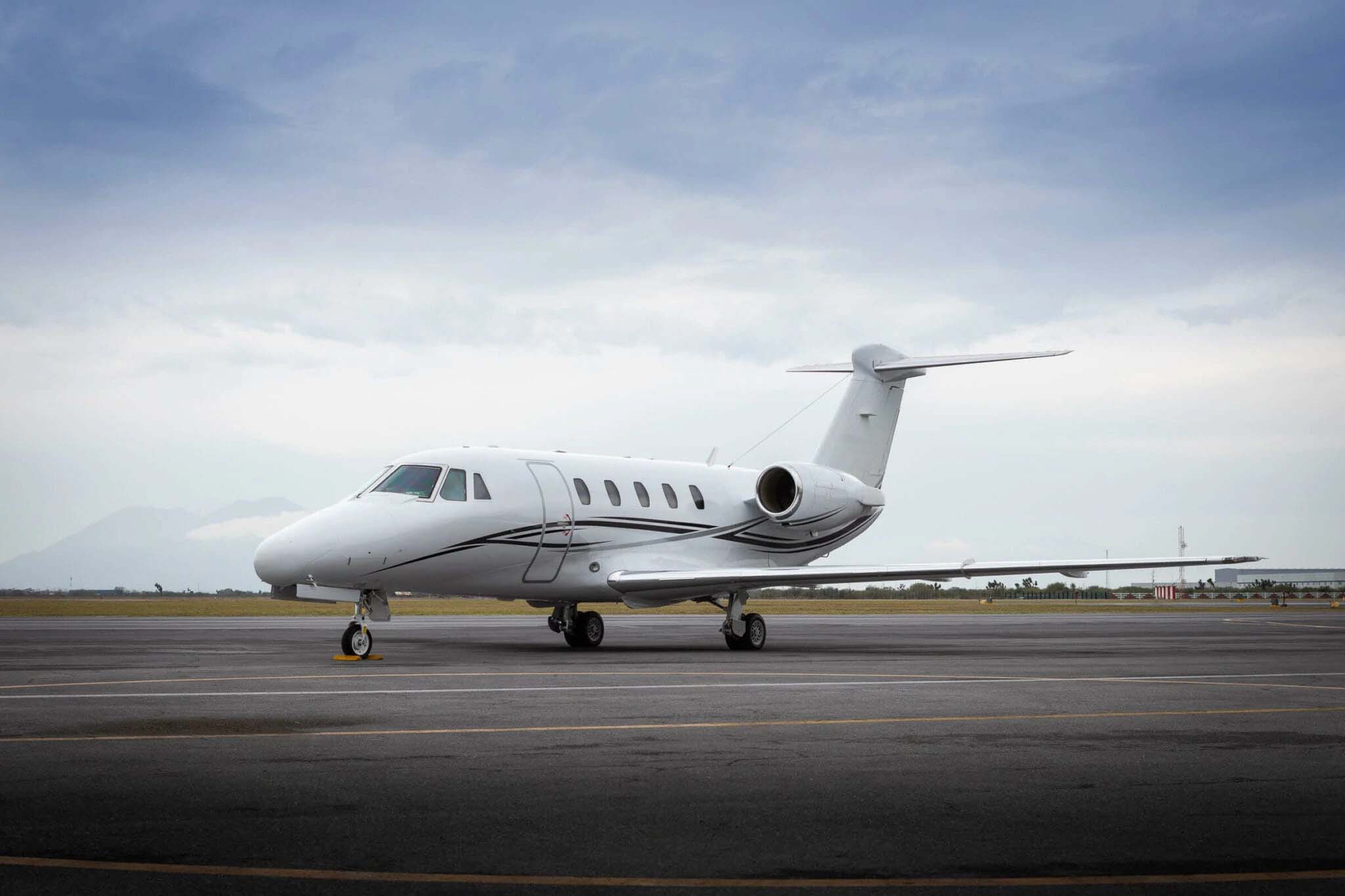

Cessna Citation VII
Designed for long-distance flights, the Cessna Citation VII offers a combination of maximum speed, comfort, and range.
8 PAXPassengers
approx.
approx.
1.74 mCabin Height
approx.
approx.
1.53 cu mBaggage Volume
(max)
(max)
3226 kmRange
depending on weight and weather
depending on weight and weather
Cessna Citation VII
Specifications
Manufacturer
Manufacturer | Cessna |
Production Years | 1992 - 2000 |
Powerplant
Engine Manufacturer | Honeywell Engines |
Engine Model | TFE 731-4R-2 |
Engine Quantity | 2 Engines |
Thrust | 1851 kg |
Exterior
Wingspan | 16.31 m |
Fuselage | 16.92 m |
Interior
Number of Passengers (Pax) | 8 Passengers |
Cabin Width | 1.68 m |
Cabin Length | 5.61 m |
Cabin Height | 1.74 m |
Total Cabin Volume | 11.95 cu m |
Total Baggage Volume | 1.53 cu m |
Speed
Normal Cruise Speed | 837 kph |
Long-Range Cruise Speed | 772 kph |
Maximum Cruise Speed | 837 kph |
Range Map
Optimum Cruise Range | 3226 km |
Maximum Cruise Range | 3176 km |
Seats Full Range | 3135 km |
Ferry Range | 3378 km |
Weight
Ramp Weight | 10274 kg |
Max Gross Takeoff Weight | 10183 kg |
Azami İniş Ağırlığı | 9072 kg |
Max Landing Weight | 3810 kg |
Usable Fuel Weight | 3350 kg |
Powerplant
Engine Manufacturer | Honeywell Engines |
Engine Model | TFE 731-4R-2 |
Engine Quantity | 2 Engines |
Thrust | 4080 lb |
Exterior
Wingspan | 53.5 ft |
Fuselage | 55.5 ft |
Interior
Number of Passengers (Pax) | 8 Yolcu |
Cabin Width | 5.5 ft |
Cabin Length | 18.4 ft |
Cabin Height | 5.7 ft |
Total Cabin Volume | 422 cu ft |
Total Baggage Volume | 54 cu ft |
Speed
Normal Cruise Range | 452 kts |
Long-Range Cruise Speed | 417 kts |
Maximum Cruise Speed | 452 kts |
Range Map
Optimum Cruise Range | 1742 nm |
Maximum Cruise Range | 1715 nm |
Seats Full Range | 1693 nm |
Ferry Range | 1824 nm |
Weight
Ramp Weight | 22650 lb |
Max Gross Takeoff Weight | 22450 lb |
Max Landing Weight | 20000 lb |
Usaful Fuel Weight | 8400 lb |
Usable Fuel Weight | 7385 lb |

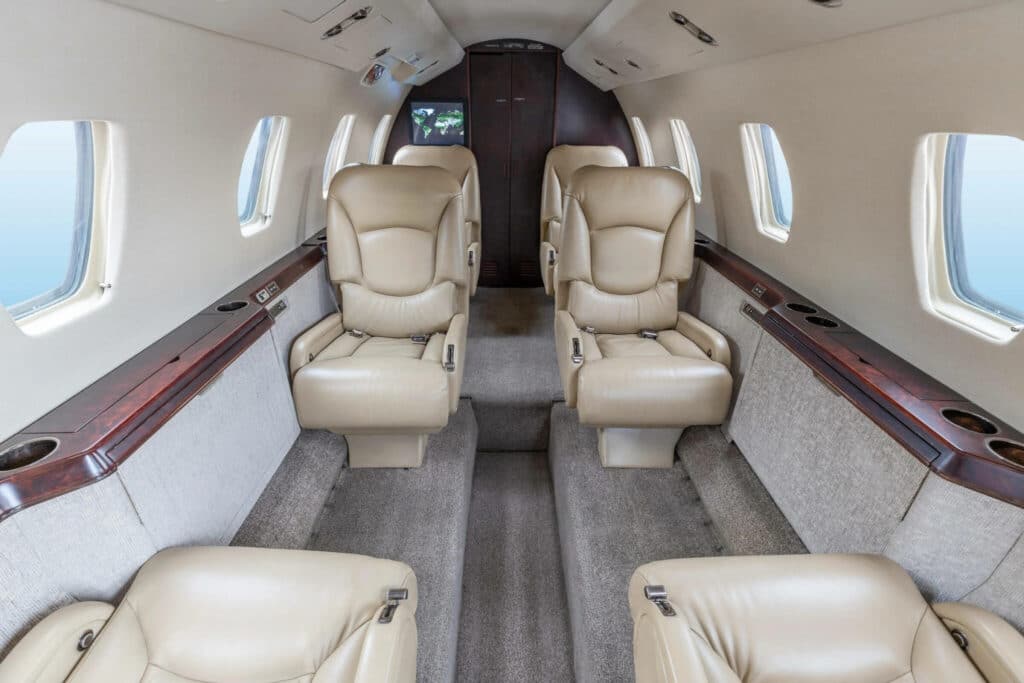

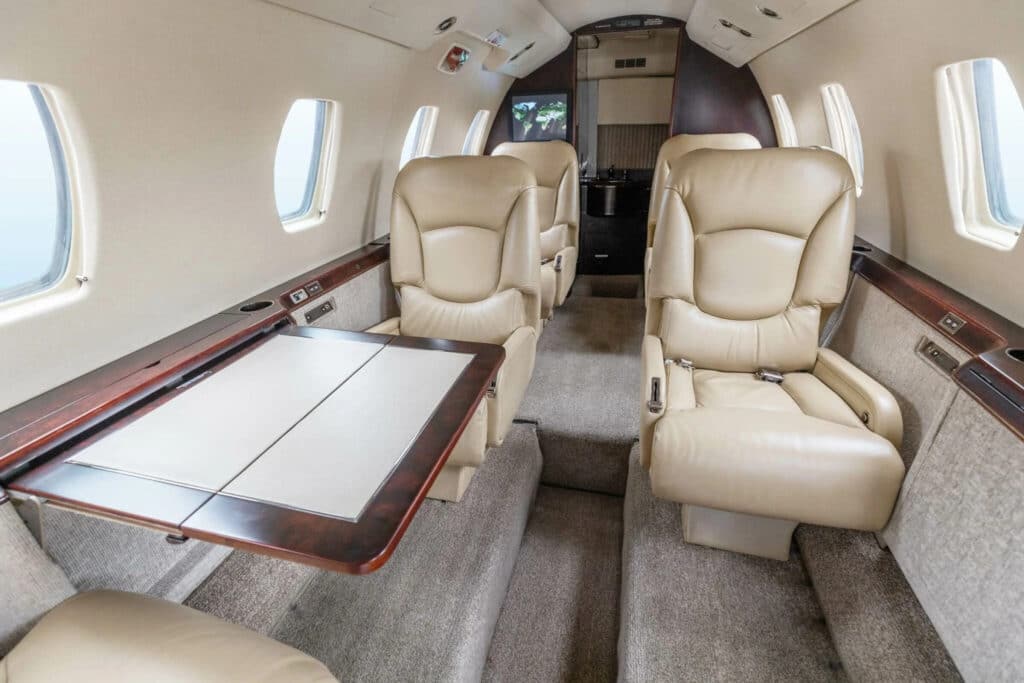

Cabin Layout
