Cirrus Vision SF50 G2
Designed for short-distance flights, the Cirrus Vision SF50 G2 offers maximum speed, efficiency and privacy.
3 PAXPassengers
approx.
approx.
1.24 mCabin Height
approx.
approx.
0.67 cu mBaggage Volume
(max)
(max)
1259 kmRange
depending on weight and weather
depending on weight and weather
Cirrus Vision SF50 G2
Specifications
Manufacturer
| Manufacturer | Cirrus |
| Production Years | 2019 - Present |
Powerplant
| Engine Manufacturer | Williams |
| Engine Model | FJ33-5A |
| Engine Quantity | 1 Engine |
| Thrust | 837 kg |
Exterior
| Wingspan | 11.58 m |
| Fuselage | 9.37 m |
Interior
| Number of Passengers (Pax) | 3 Passengers |
| Cabin Width | 1.55 m |
| Cabin Length | 3.50 m |
| Cabin Height | 1.24 m |
| Total Cabin Volume | 4.81 cu m |
| Total Baggage Volume | 0.67 cu m |
Speed
| Normal Cruise Speed | 528 kph |
| Long-Range Cruise Speed | 433 kph |
| Maximum Cruise Speed | 583 kph |
Range Map
| Optimum Cruise Range | 1259 km |
| Maximum Cruise Range | 1130 km |
| Seats Full Range | 2143 km |
| Ferry Range | 2904 km |
Weight
| Ramp Weight | 2722 kg |
| Max Gross Takeoff Weight | 2722 kg |
| Azami İniş Ağırlığı | 2517 kg |
| Max Landing Weight | 969 kg |
| Usable Fuel Weight | 899 kg |
Powerplant
| Engine Manufacturer | Williams |
| Engine Model | FJ33-5A |
| Engine Quantity | 1 Engine |
| Thrust | 1846 lb |
Exterior
| Wingspan | 38 ft |
| Fuselage | 30.75 ft |
Interior
| Number of Passengers (Pax) | 3 Yolcu |
| Cabin Width | 5.08 ft |
| Cabin Length | 11.48 ft |
| Cabin Height | 4.07 ft |
| Total Cabin Volume | 170 cu ft |
| Total Baggage Volume | 23.5 cu ft |
Speed
| Normal Cruise Range | 285 kts |
| Long-Range Cruise Speed | 234 kts |
| Maximum Cruise Speed | 315 kts |
Range Map
| Optimum Cruise Range | 680 nm |
| Maximum Cruise Range | 610 nm |
| Seats Full Range | 1157 nm |
| Ferry Range | 1568 nm |
Weight
| Ramp Weight | 6000 lb |
| Max Gross Takeoff Weight | 6000 lb |
| Max Landing Weight | 5550 lb |
| Usaful Fuel Weight | 2137 lb |
| Usable Fuel Weight | 1983 lb |

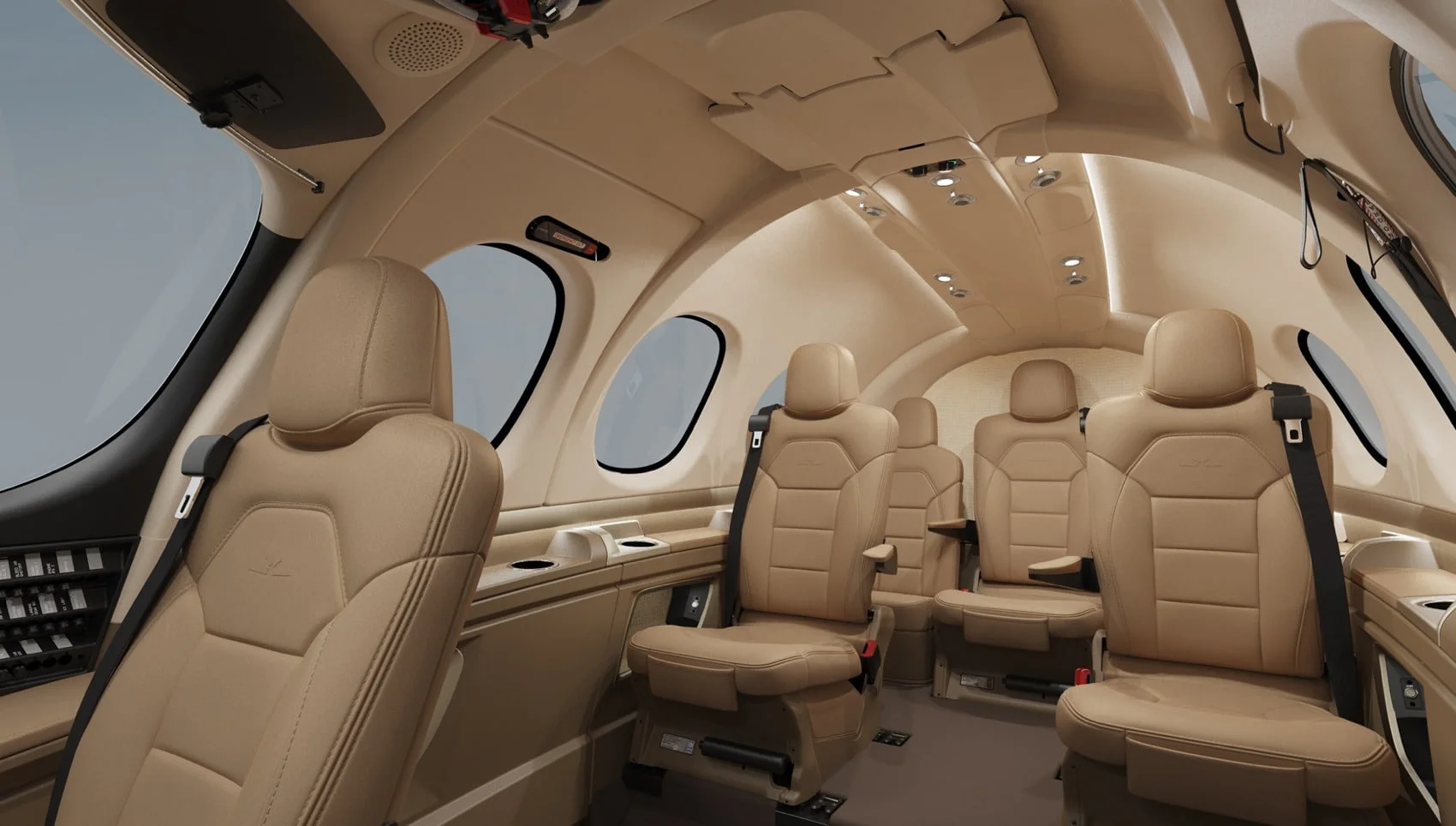

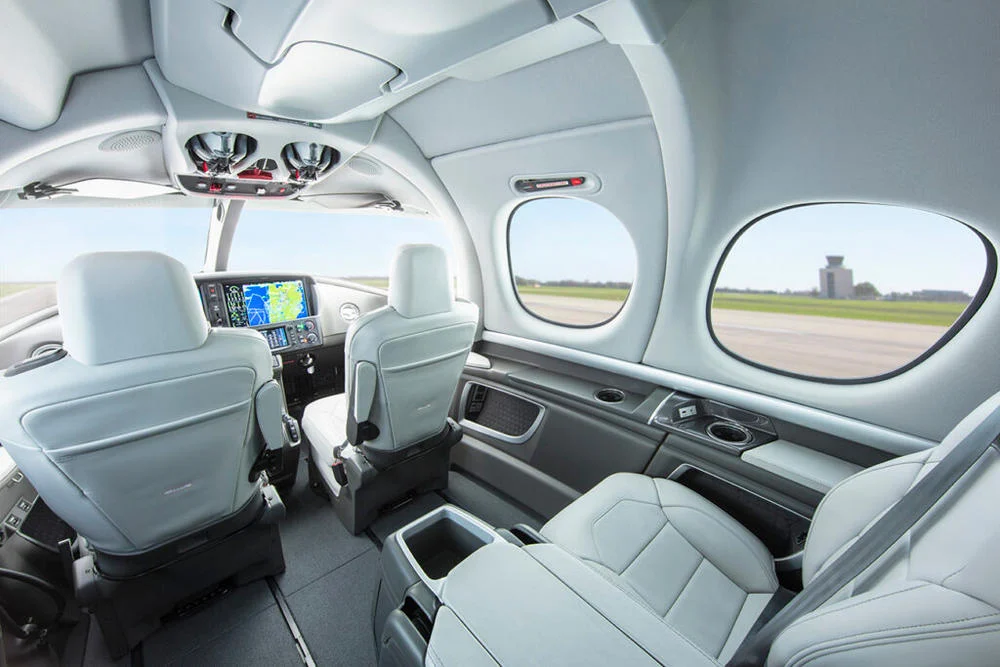

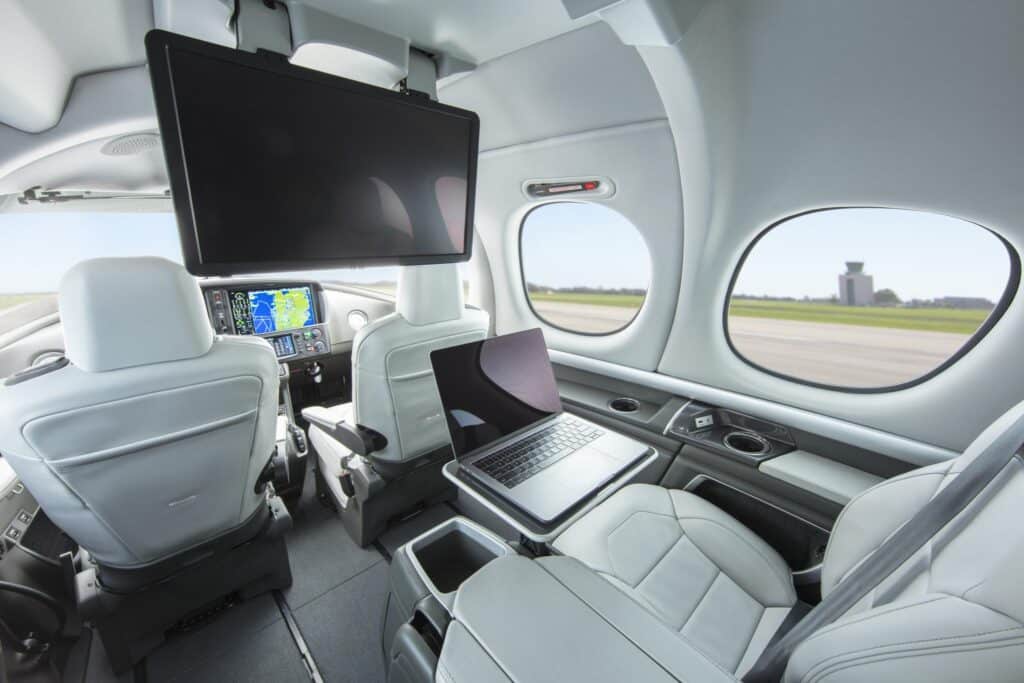

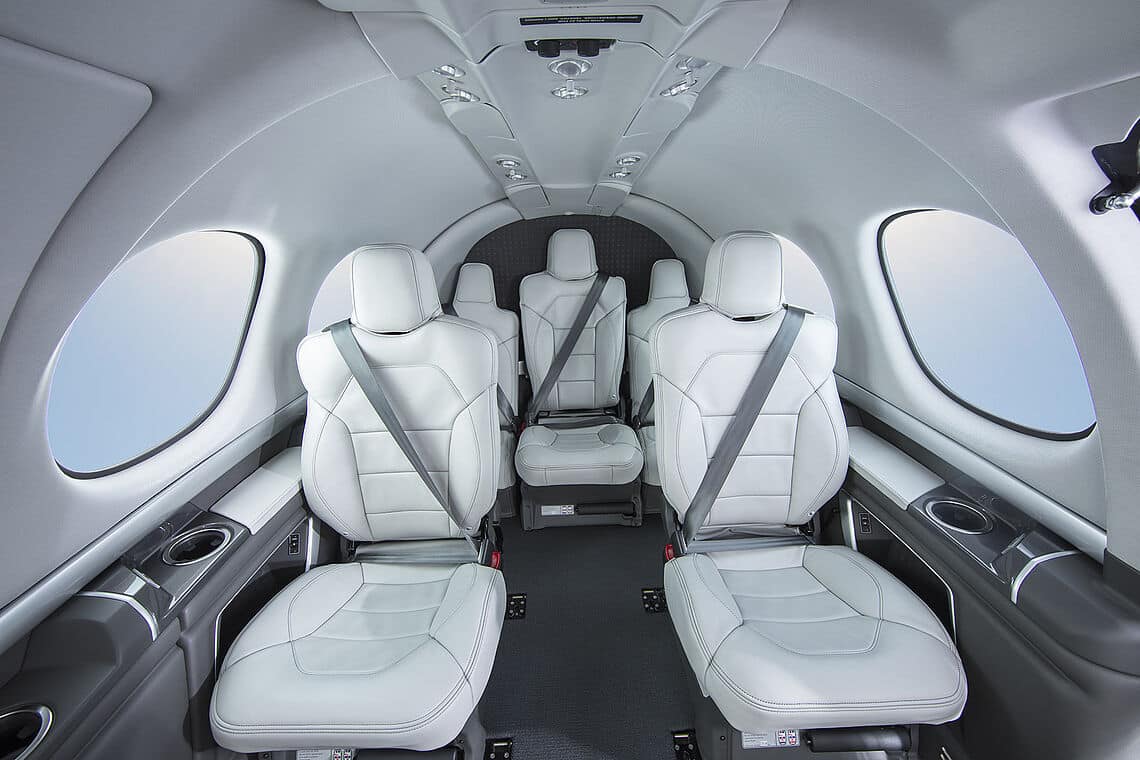

Cabin Layout
Cirrus Vision SF50 G2
Range Map
Cirrus Vision SF50 G2 range maps will be here very shortly.For detailed information about Cirrus Vision SF50 G2, please contact us.
