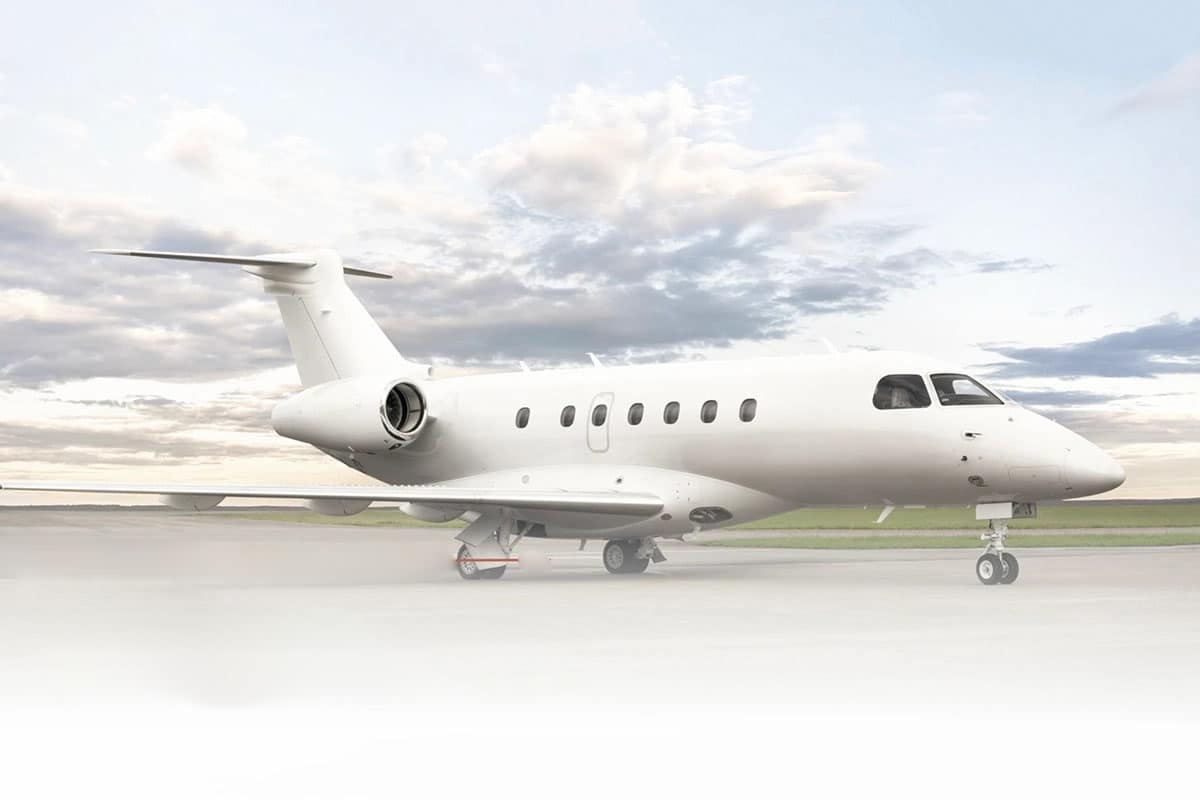

Embraer Legacy 500
Designed for long-distance flights, the Embraer Legacy 500 offers a combination of maximum speed, comfort, and range.
8 PAXPassengers
approx.
approx.
1.83 mCabin Height
approx.
approx.
4.39 cu mBaggage Volume
(max)
(max)
5732 kmRange
depending on weight and weather
depending on weight and weather
Embraer Legacy 500
Specifications
Manufacturer
| Manufacturer | Embraer |
| Production Years | 2014 - 2020 |
Powerplant
| Engine Manufacturer | Honeywell Engines |
| Engine Model | HTF7500E |
| Engine Quantity | 2 Engines |
| Thrust | 3192 kg |
Exterior
| Wingspan | 20.24 m |
| Fuselage | 20.75 m |
Interior
| Number of Passengers (Pax) | 8 Passengers |
| Cabin Width | 2.08 m |
| Cabin Length | 8.38 m |
| Cabin Height | 1.83 m |
| Total Cabin Volume | 23.30 cu m |
| Total Baggage Volume | 4.39 cu m |
Speed
| Normal Cruise Speed | 850 kph |
| Long-Range Cruise Speed | 813 kph |
| Maximum Cruise Speed | 874 kph |
Range Map
| Optimum Cruise Range | 5732 km |
| Maximum Cruise Range | 5528 km |
| Seats Full Range | 5115 km |
| Ferry Range | 5865 km |
Weight
| Ramp Weight | 17480 kg |
| Max Gross Takeoff Weight | 17400 kg |
| Azami İniş Ağırlığı | 15660 kg |
| Max Landing Weight | 6662 kg |
| Usable Fuel Weight | 5923 kg |
Powerplant
| Engine Manufacturer | Honeywell Engines |
| Engine Model | HTF7500E |
| Engine Quantity | 2 Engines |
| Thrust | 7036 lb |
Exterior
| Wingspan | 66.4 ft |
| Fuselage | 68.08 ft |
Interior
| Number of Passengers (Pax) | 8 Yolcu |
| Cabin Width | 6.83 ft |
| Cabin Length | 27.5 ft |
| Cabin Height | 6 ft |
| Total Cabin Volume | 823 cu ft |
| Total Baggage Volume | 155 cu ft |
Speed
| Normal Cruise Range | 459 kts |
| Long-Range Cruise Speed | 439 kts |
| Maximum Cruise Speed | 472 kts |
Range Map
| Optimum Cruise Range | 3095 nm |
| Maximum Cruise Range | 2985 nm |
| Seats Full Range | 2762 nm |
| Ferry Range | 3167 nm |
Weight
| Ramp Weight | 38536 lb |
| Max Gross Takeoff Weight | 38360 lb |
| Max Landing Weight | 34524 lb |
| Usaful Fuel Weight | 14686 lb |
| Usable Fuel Weight | 13058 lb |
Cabin Layout
Embraer Legacy 500
Range Map
Embraer Legacy 500 range maps will be here very shortly.For detailed information about Embraer Legacy 500, please contact us.
Suggested posts may change from time to time. You can get more details about Embraer Legacy 500 from Mira Aviation Experts.
