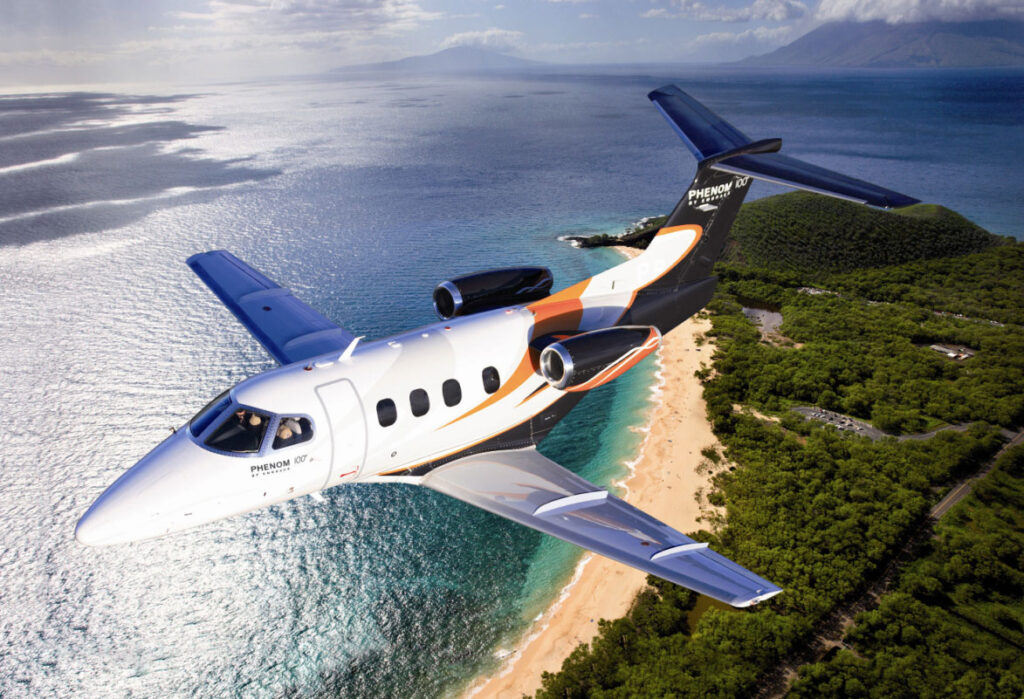

Embraer Phenom 100
Designed for short-distance flights, the Embraer Phenom 100 offers maximum speed, efficiency and privacy.
5 PAXPassengers
approx.
approx.
1.50 mCabin Height
approx.
approx.
1.98 cu mBaggage Volume
(max)
(max)
1935 kmRange
depending on weight and weather
depending on weight and weather
Embraer Phenom 100
Specifications
Manufacturer
| Manufacturer | Embraer |
| Production Years | 2008 - 2013 |
Powerplant
| Engine Manufacturer | Pratt & Whitney Canada |
| Engine Model | PW617F-E |
| Engine Quantity | 2 Engines |
| Thrust | 769 kg |
Exterior
| Wingspan | 12.31 m |
| Fuselage | 12.83 m |
Interior
| Number of Passengers (Pax) | 5 Passengers |
| Cabin Width | 1.55 m |
| Cabin Length | 3.35 m |
| Cabin Height | 1.50 m |
| Total Cabin Volume | 6.00 cu m |
| Total Baggage Volume | 1.98 cu m |
Speed
| Normal Cruise Speed | 687 kph |
| Long-Range Cruise Speed | 617 kph |
| Maximum Cruise Speed | 722 kph |
Range Map
| Optimum Cruise Range | 1935 km |
| Maximum Cruise Range | 1704 km |
| Seats Full Range | 1695 km |
| Ferry Range | 2300 km |
Weight
| Ramp Weight | 4770 kg |
| Max Gross Takeoff Weight | 4750 kg |
| Azami İniş Ağırlığı | 4430 kg |
| Max Landing Weight | 1535 kg |
| Usable Fuel Weight | 1272 kg |
Powerplant
| Engine Manufacturer | Pratt & Whitney Canada |
| Engine Model | PW617F-E |
| Engine Quantity | 2 Engines |
| Thrust | 1695 lb |
Exterior
| Wingspan | 40.4 ft |
| Fuselage | 42.1 ft |
Interior
| Number of Passengers (Pax) | 5 Yolcu |
| Cabin Width | 5.08 ft |
| Cabin Length | 11 ft |
| Cabin Height | 4.92 ft |
| Total Cabin Volume | 212 cu ft |
| Total Baggage Volume | 70 cu ft |
Speed
| Normal Cruise Range | 371 kts |
| Long-Range Cruise Speed | 333 kts |
| Maximum Cruise Speed | 390 kts |
Range Map
| Optimum Cruise Range | 1045 nm |
| Maximum Cruise Range | 920 nm |
| Seats Full Range | 915 nm |
| Ferry Range | 1242 nm |
Weight
| Ramp Weight | 10516 lb |
| Max Gross Takeoff Weight | 10472 lb |
| Max Landing Weight | 9766 lb |
| Usaful Fuel Weight | 3384 lb |
| Usable Fuel Weight | 2804 lb |
Cabin Layout
Suggested posts may change from time to time. You can get more details about Embraer Phenom 100 from Mira Aviation Experts.
