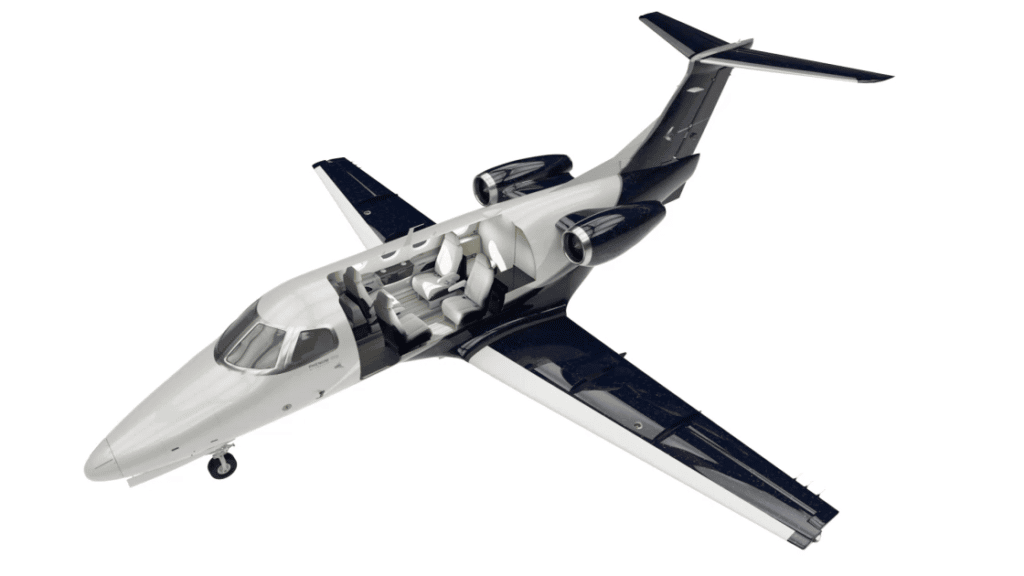

Embraer Phenom 100EV
Designed for short-distance flights, the Embraer Phenom 100EV offers maximum speed, efficiency and privacy.
5 PAXPassengers
approx.
approx.
1.51 mCabin Height
approx.
approx.
1.98 cu mBaggage Volume
(max)
(max)
1935 kmRange
depending on weight and weather
depending on weight and weather
Embraer Phenom 100EV
Specifications
Manufacturer
| Manufacturer | Embraer |
| Production Years | 2016 - Present |
Powerplant
| Engine Manufacturer | Pratt & Whitney Canada |
| Engine Model | PW617F1-E |
| Engine Quantity | 2 Engines |
| Thrust | 785 kg |
Exterior
| Wingspan | 12.31 m |
| Fuselage | 12.83 m |
Interior
| Number of Passengers (Pax) | 5 Passengers |
| Cabin Width | 1.55 m |
| Cabin Length | 3.35 m |
| Cabin Height | 1.51 m |
| Total Cabin Volume | 6.00 cu m |
| Total Baggage Volume | 1.98 cu m |
Speed
| Normal Cruise Speed | 617 kph |
| Long-Range Cruise Speed | 628 kph |
| Maximum Cruise Speed | 752 kph |
Range Map
| Optimum Cruise Range | 1935 km |
| Maximum Cruise Range | 1704 km |
| Seats Full Range | 2182 km |
| Ferry Range | 2241 km |
Weight
| Ramp Weight | 4820 kg |
| Max Gross Takeoff Weight | 4800 kg |
| Azami İniş Ağırlığı | 4480 kg |
| Max Landing Weight | 1545 kg |
| Usable Fuel Weight | 1272 kg |
Powerplant
| Engine Manufacturer | Pratt & Whitney Canada |
| Engine Model | PW617F1-E |
| Engine Quantity | 2 Engines |
| Thrust | 1730 lb |
Exterior
| Wingspan | 40.4 ft |
| Fuselage | 42.1 ft |
Interior
| Number of Passengers (Pax) | 5 Yolcu |
| Cabin Width | 5.08 ft |
| Cabin Length | 11 ft |
| Cabin Height | 4.94 ft |
| Total Cabin Volume | 212 cu ft |
| Total Baggage Volume | 70 cu ft |
Speed
| Normal Cruise Range | 333 kts |
| Long-Range Cruise Speed | 339 kts |
| Maximum Cruise Speed | 406 kts |
Range Map
| Optimum Cruise Range | 1045 nm |
| Maximum Cruise Range | 920 nm |
| Seats Full Range | 1178 nm |
| Ferry Range | 1210 nm |
Weight
| Ramp Weight | 10626 lb |
| Max Gross Takeoff Weight | 10582 lb |
| Max Landing Weight | 9877 lb |
| Usaful Fuel Weight | 3406 lb |
| Usable Fuel Weight | 2804 lb |

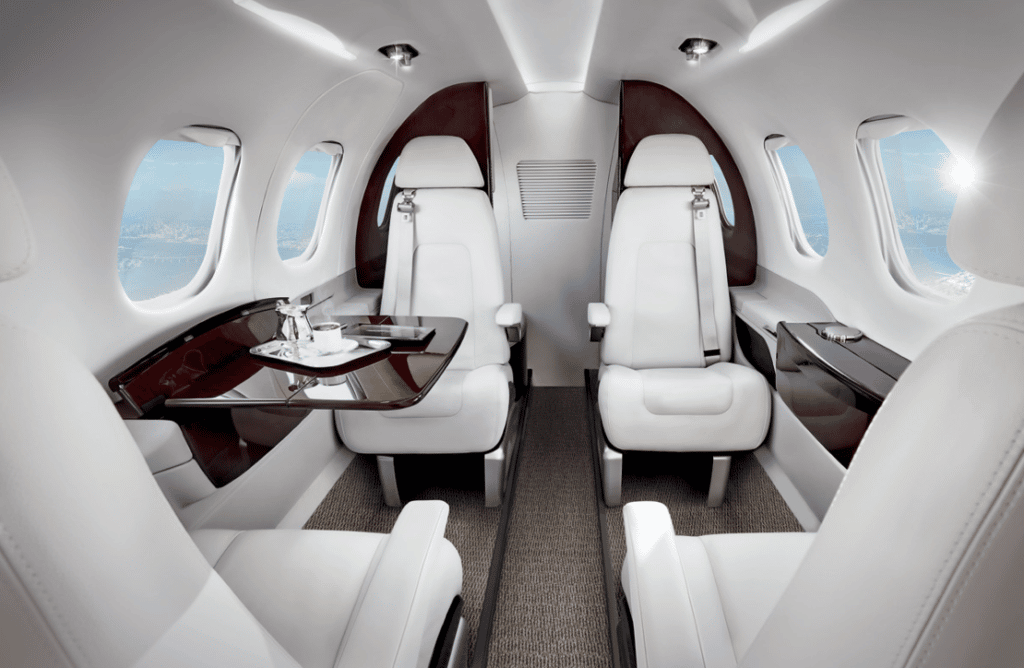

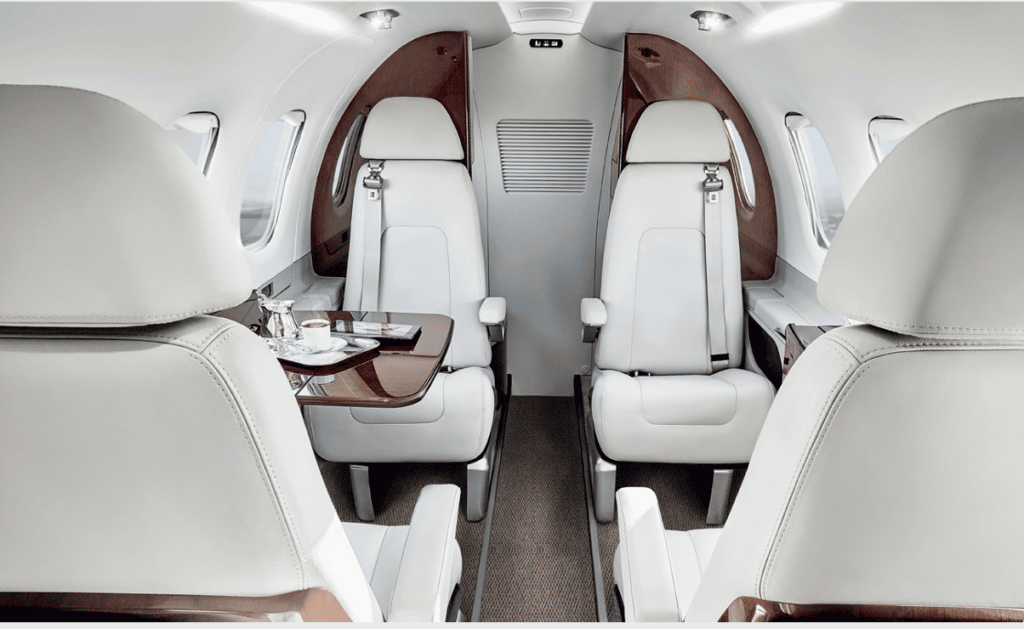

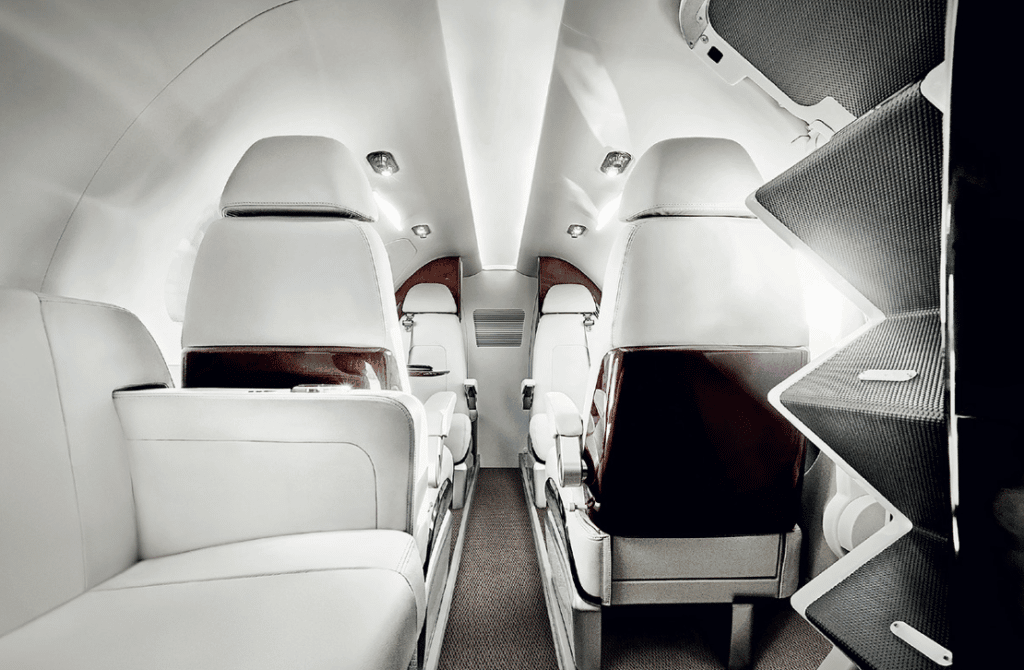

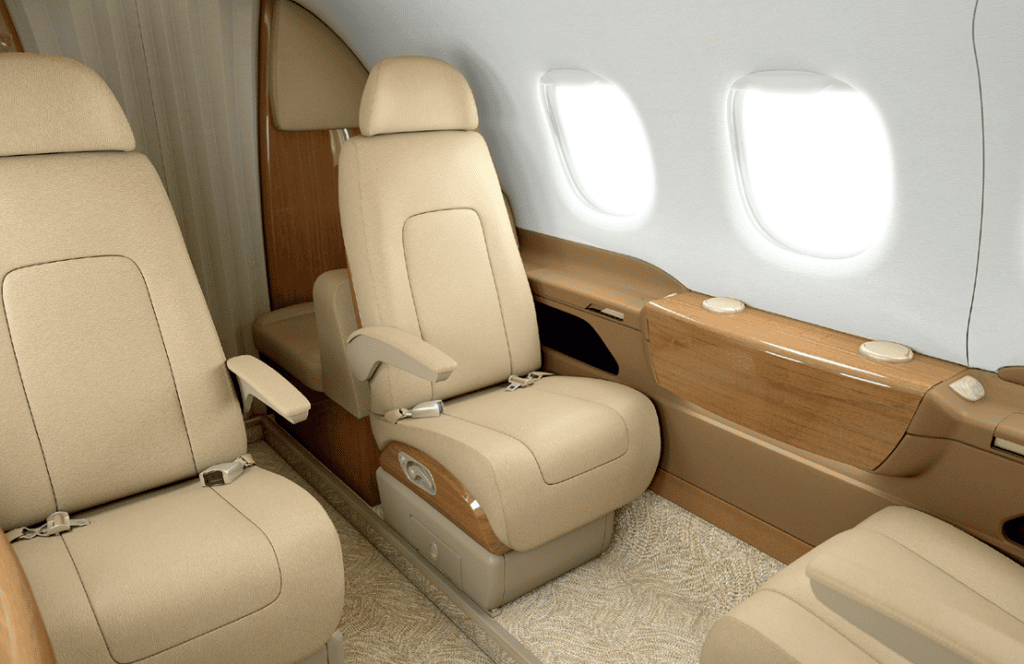

Cabin Layout
