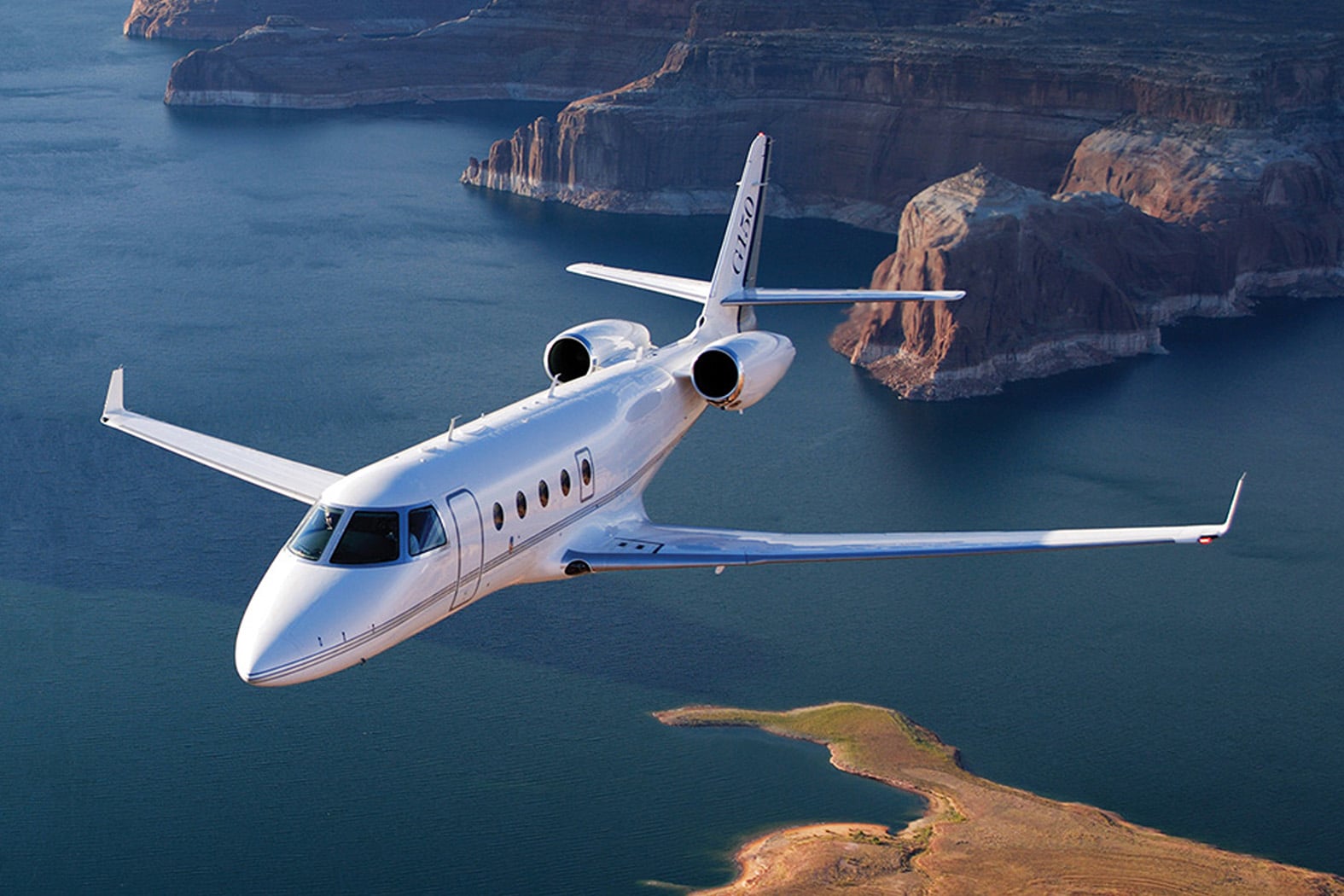

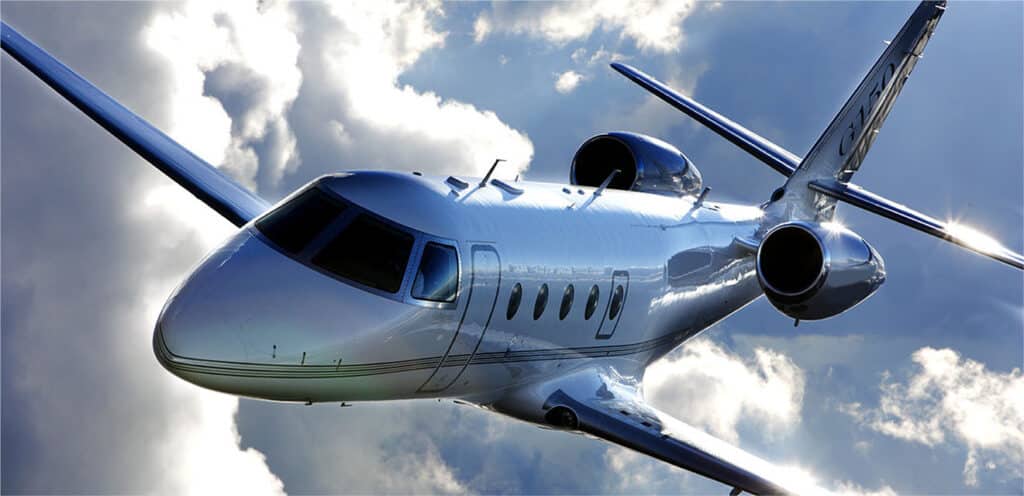

Gulfstream G150
Designed for long-distance flights, the Gulfstream G150 offers a combination of maximum speed, comfort, and range.
7 PAXPassengers
approx.
approx.
1.75 mCabin Height
approx.
approx.
2.27 cu mBaggage Volume
(max)
(max)
5589 kmRange
depending on weight and weather
depending on weight and weather
Gulfstream G150
Specifications
Manufacturer
| Manufacturer | Gulfstream |
| Production Years | 2006 - 2016 |
Powerplant
| Engine Manufacturer | Honeywell Engines |
| Engine Model | TFE 731-40AR |
| Engine Quantity | 2 Engines |
| Thrust | 2005 kg |
Exterior
| Wingspan | 16.95 m |
| Fuselage | 17.28 m |

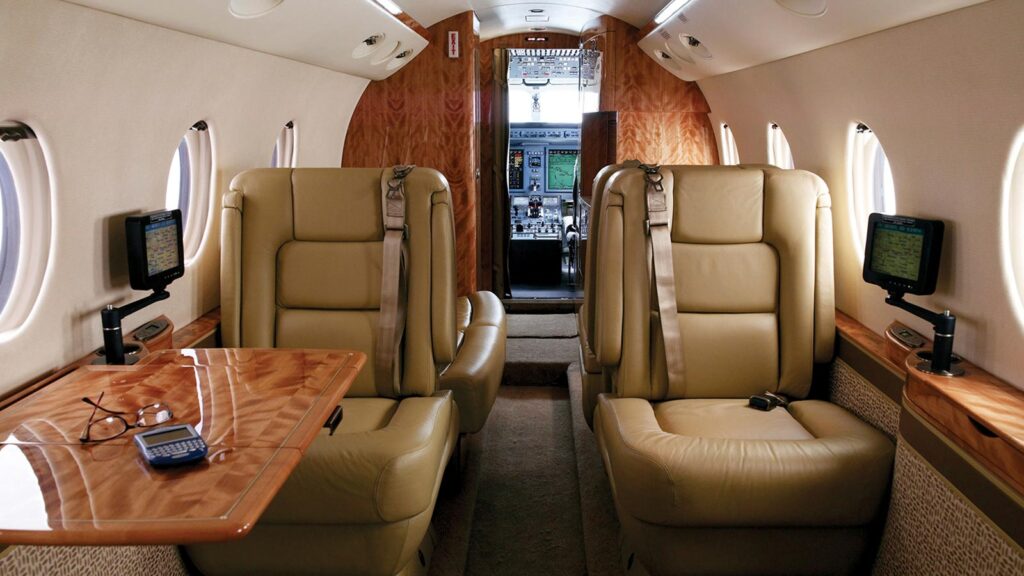

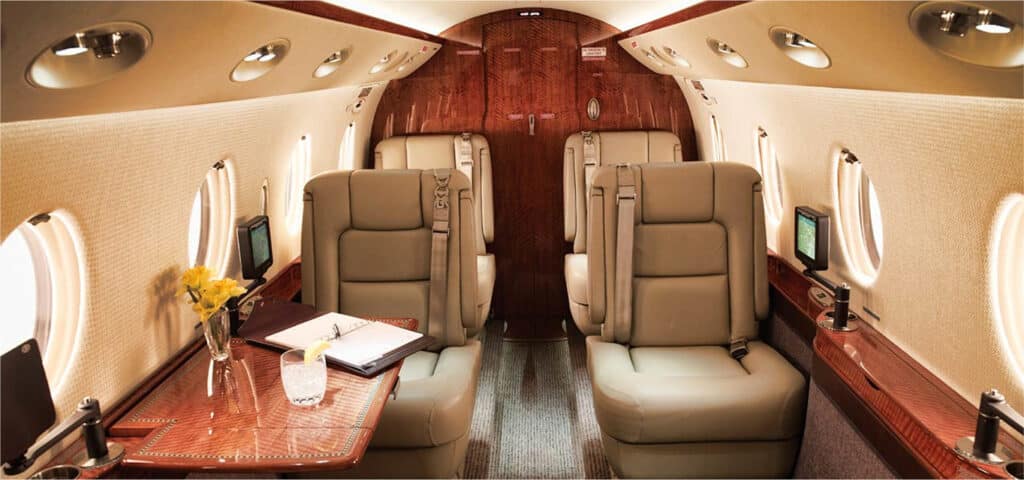

Interior
| Number of Passengers (Pax) | 7 Passengers |
| Cabin Width | 1.75 m |
| Cabin Length | 5.39 m |
| Cabin Height | 1.75 m |
| Total Cabin Volume | 14.75 cu m |
| Total Baggage Volume | 2.27 cu m |
Speed
| Normal Cruise Speed | 850 kph |
| Long-Range Cruise Speed | 796 kph |
| Maximum Cruise Speed | 870 kph |
Range Map
| Optimum Cruise Range | 5589 km |
| Maximum Cruise Range | 4856 km |
| Seats Full Range | 5112 km |
| Ferry Range | 5797 km |
Weight
| Ramp Weight | 11907 kg |
| Max Gross Takeoff Weight | 11839 kg |
| Azami İniş Ağırlığı | 9843 kg |
| Max Landing Weight | 5058 kg |
| Usable Fuel Weight | 4672 kg |
Powerplant
| Engine Manufacturer | Honeywell Engines |
| Engine Model | TFE 731-40AR |
| Engine Quantity | 2 Engines |
| Thrust | 4420 lb |
Exterior
| Wingspan | 55.6 ft |
| Fuselage | 56.7 ft |
Interior
| Number of Passengers (Pax) | 7 Yolcu |
| Cabin Width | 5.75 ft |
| Cabin Length | 17.7 ft |
| Cabin Height | 5.75 ft |
| Total Cabin Volume | 521 cu ft |
| Total Baggage Volume | 80 cu ft |
Speed
| Normal Cruise Range | 459 kts |
| Long-Range Cruise Speed | 430 kts |
| Maximum Cruise Speed | 470 kts |
Range Map
| Optimum Cruise Range | 3018 nm |
| Maximum Cruise Range | 2622 nm |
| Seats Full Range | 2760 nm |
| Ferry Range | 3130 nm |
Weight
| Ramp Weight | 26250 lb |
| Max Gross Takeoff Weight | 26100 lb |
| Max Landing Weight | 21700 lb |
| Usaful Fuel Weight | 11150 lb |
| Usable Fuel Weight | 10300 lb |
Cabin Layout
