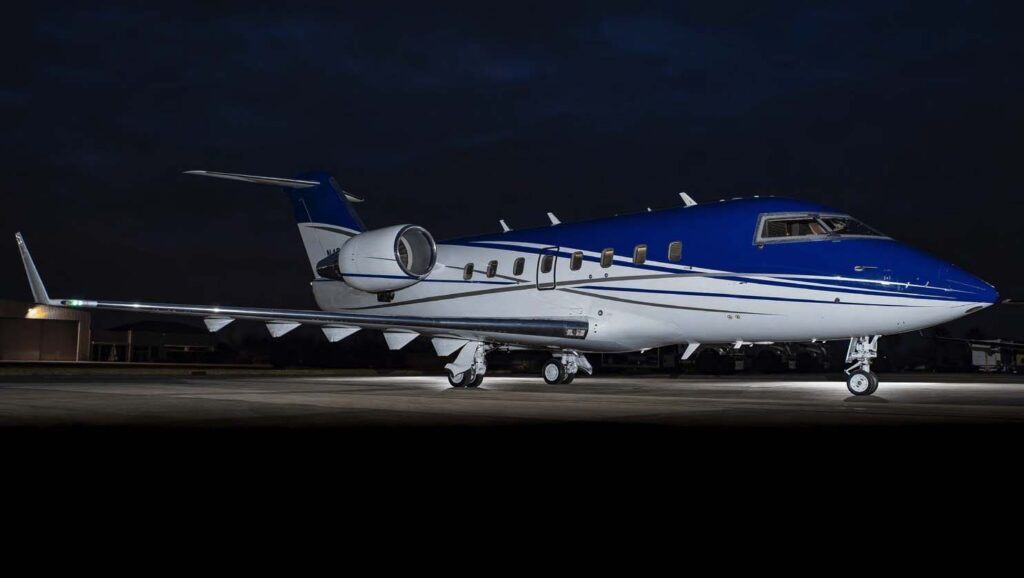

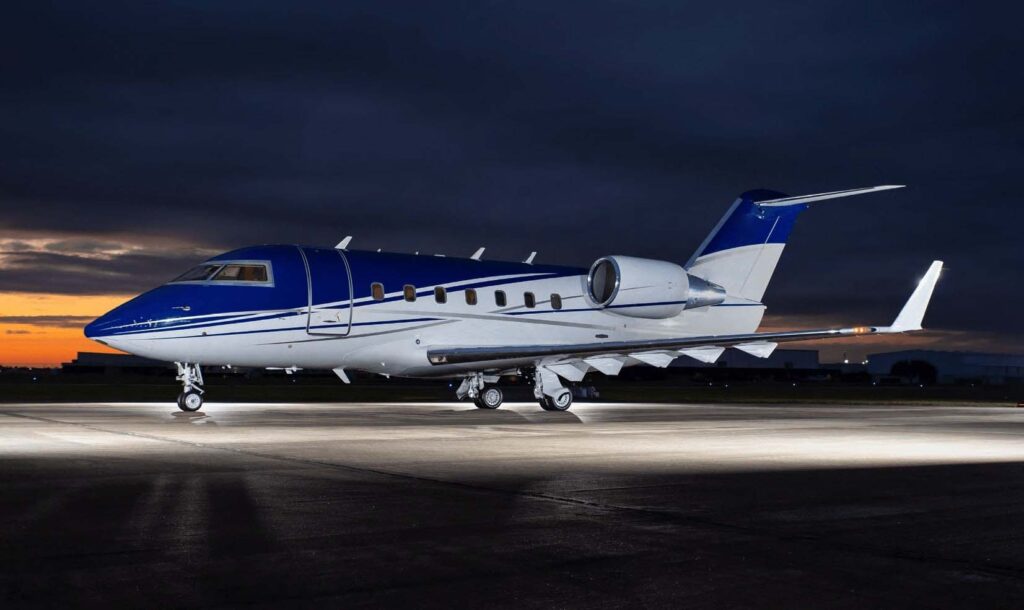

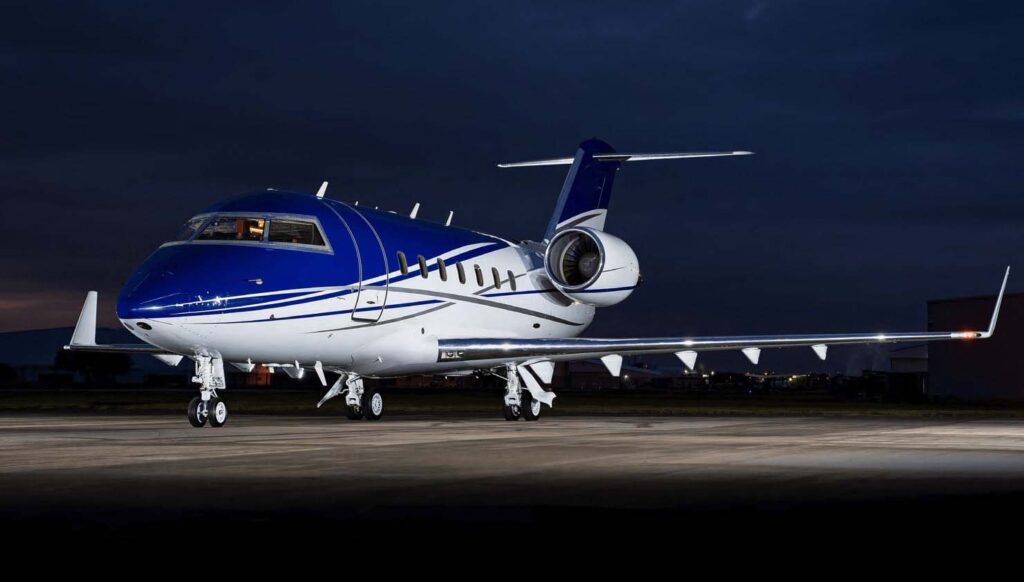

Bombardier Challenger 601-3A

Specifications

Manufacturer
Manufacturer Bombardier
Production Years 1987 - 1993
Powerplant
Engine Manufacturer General Electric
Engine Model CF34-3A
Engine Quantity 2 Engines
Thrust 3924 kg
Exterior
Wingspan 19.60 m
Fuselage 20.88 m
Interior
Number of Passengers (Pax) 9 Passengers
Cabin Width 2.50 m
Cabin Length 8.63 m
Cabin Height 1.86 m
Total Cabin Volume 32.45 cu m
Total Baggage Volume 3.26 cu m
Speed
Normal Cruise Speed 820 kph
Long-Range Cruise Speed 787 kph
Maximum Cruise Speed 850 kph
Range Map
Optimum Cruise Range 6091 km
Maximum Cruise Range 5606 km
Seats Full Range 5704 km
Ferry Range 6241 km
Weight
Ramp Weight 19618 kg
Max Gross Takeoff Weight 19550 kg
Azami İniş Ağırlığı 16330 kg
Max Landing Weight 7825 kg
Usable Fuel Weight 7448 kg
Powerplant
Engine Manufacturer General Electric
Engine Model CF34-3A
Engine Quantity 2 Engines
Thrust 8650 lb
Exterior
Wingspan 64.3 ft
Fuselage 68.5 ft
Interior
Number of Passengers (Pax) 9 Yolcu
Cabin Width 8.2 ft
Cabin Length 28.3 ft
Cabin Height 6.1 ft
Total Cabin Volume 1146 cu ft
Total Baggage Volume 115 cu ft
Speed
Normal Cruise Range 443 kts
Long-Range Cruise Speed 425 kts
Maximum Cruise Speed 459 kts
Range Map
Optimum Cruise Range 3289 nm
Maximum Cruise Range 3027 nm
Seats Full Range 3080 nm
Ferry Range 3370 nm
Weight
Ramp Weight 43250 lb
Max Gross Takeoff Weight 43100 lb
Max Landing Weight 36000 lb
Usaful Fuel Weight 17250 lb
Usable Fuel Weight 16420 lb

Cabin Layout

Bombardier Challenger 601-3A

Range Map

Bombardier Challenger 601-3A range maps will be here very shortly.For detailed information about Bombardier Challenger 601-3A, please contact us.
