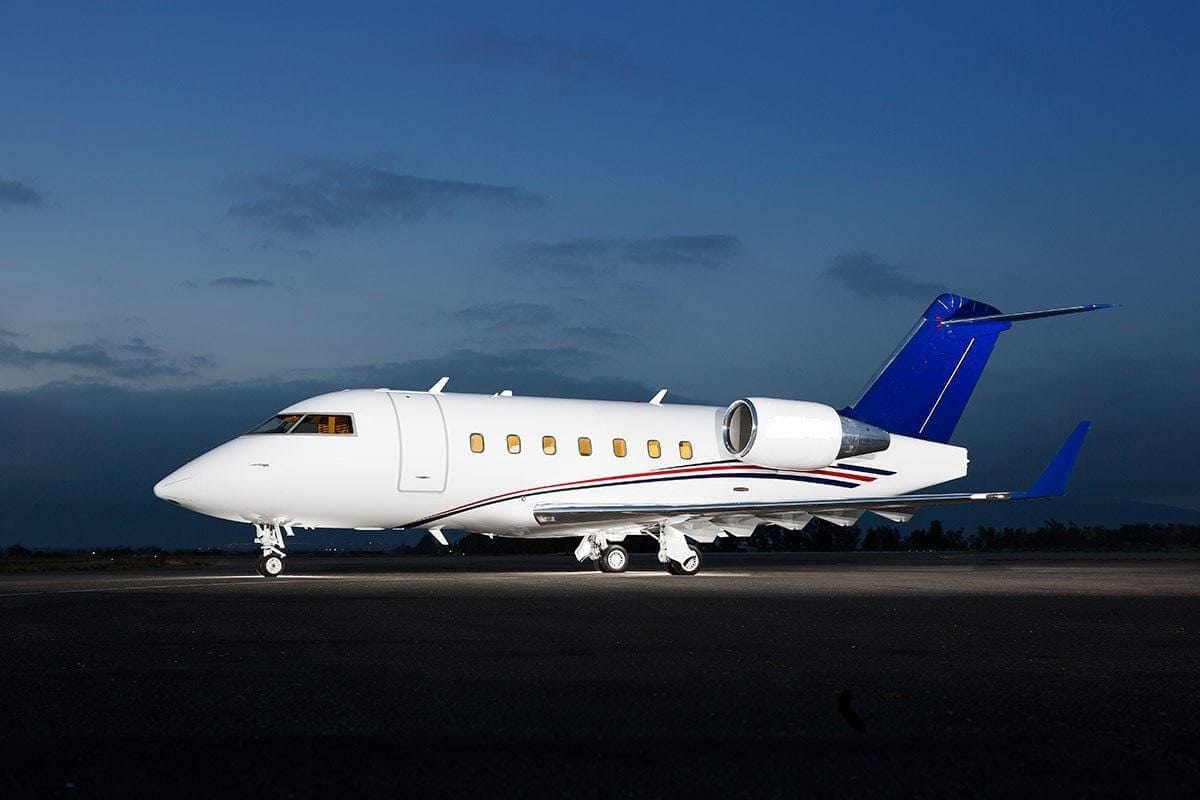

Bombardier Challenger 601-3R
Designed for long-distance flights, the Bombardier Challenger 601-3R offers a combination of maximum speed, comfort, and range.
9 PAXPassengers
approx.
approx.
1.86 mCabin Height
approx.
approx.
3.26 cu mBaggage Volume
(max)
(max)
6091 kmRange
depending on weight and weather
depending on weight and weather
Bombardier Challenger 601-3R
Specifications
Manufacturer
| Manufacturer | Bombardier |
| Production Years | 1993 - 1996 |
Powerplant
| Engine Manufacturer | General Electric |
| Engine Model | CF34-3A1 |
| Engine Quantity | 2 Engines |
| Thrust | 3924 kg |
Exterior
| Wingspan | 19.60 m |
| Fuselage | 20.88 m |
Interior
| Number of Passengers (Pax) | 9 Passengers |
| Cabin Width | 2.50 m |
| Cabin Length | 8.63 m |
| Cabin Height | 1.86 m |
| Total Cabin Volume | 32.45 cu m |
| Total Baggage Volume | 3.26 cu m |
Speed
| Normal Cruise Speed | 820 kph |
| Long-Range Cruise Speed | 787 kph |
| Maximum Cruise Speed | 850 kph |
Range Map
| Optimum Cruise Range | 6091 km |
| Maximum Cruise Range | 5606 km |
| Seats Full Range | 6260 km |
| Ferry Range | 6649 km |
Weight
| Ramp Weight | 20525 kg |
| Max Gross Takeoff Weight | 20457 kg |
| Azami İniş Ağırlığı | 16330 kg |
| Max Landing Weight | 8618 kg |
| Usable Fuel Weight | 7999 kg |
Powerplant
| Engine Manufacturer | General Electric |
| Engine Model | CF34-3A1 |
| Engine Quantity | 2 Engines |
| Thrust | 8650 lb |
Exterior
| Wingspan | 64.3 ft |
| Fuselage | 68.5 ft |
Interior
| Number of Passengers (Pax) | 9 Yolcu |
| Cabin Width | 8.2 ft |
| Cabin Length | 28.3 ft |
| Cabin Height | 6.1 ft |
| Total Cabin Volume | 1146 cu ft |
| Total Baggage Volume | 115 cu ft |
Speed
| Normal Cruise Range | 443 kts |
| Long-Range Cruise Speed | 425 kts |
| Maximum Cruise Speed | 459 kts |
Range Map
| Optimum Cruise Range | 3289 nm |
| Maximum Cruise Range | 3027 nm |
| Seats Full Range | 3380 nm |
| Ferry Range | 3590 nm |
Weight
| Ramp Weight | 45250 lb |
| Max Gross Takeoff Weight | 45100 lb |
| Max Landing Weight | 36000 lb |
| Usaful Fuel Weight | 19000 lb |
| Usable Fuel Weight | 17635 lb |
Cabin Layout
Bombardier Challenger 601-3R
Range Map
Bombardier Challenger 601-3R range maps will be here very shortly.For detailed information about Bombardier Challenger 601-3R, please contact us.
