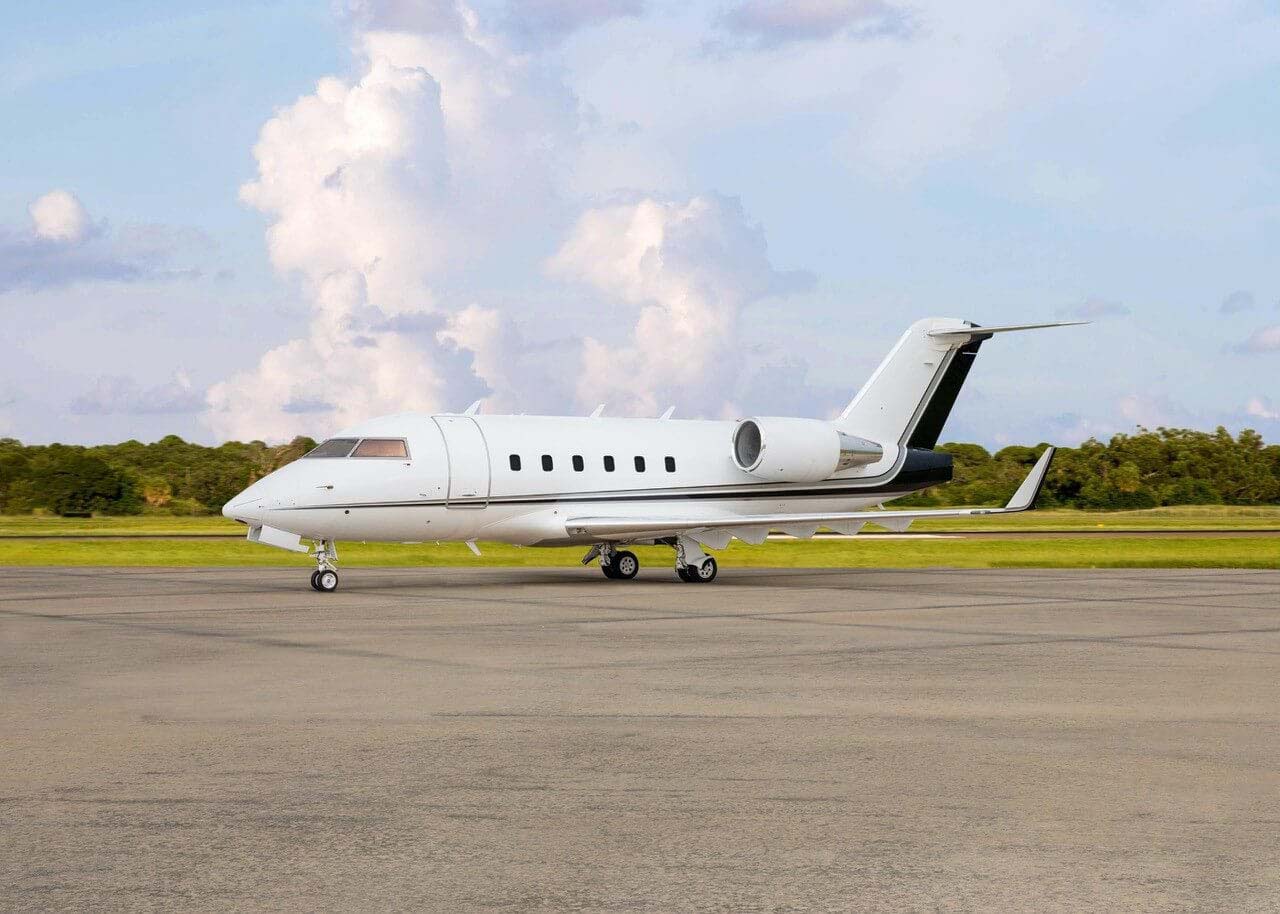

Bombardier Challenger 604

Specifications

Manufacturer
Manufacturer Bombardier
Production Years 1996 - 2007
Powerplant
Engine Manufacturer General Electric
Engine Model CF34-3B
Engine Quantity 2 Engines
Thrust 4182 kg
Exterior
Wingspan 19.60 m
Fuselage 20.88 m
Interior
Number of Passengers (Pax) 10 Passengers
Cabin Width 2.49 m
Cabin Length 8.66 m
Cabin Height 1.85 m
Total Cabin Volume 32.45 cu m
Total Baggage Volume 3.26 cu m
Speed
Normal Cruise Speed 850 kph
Long-Range Cruise Speed 787 kph
Maximum Cruise Speed 904 kph
Range Map
Optimum Cruise Range 7469 km
Maximum Cruise Range 6886 km
Seats Full Range 6956 km
Ferry Range 7628 km
Weight
Ramp Weight 21869 kg
Max Gross Takeoff Weight 21864 kg
Azami İniş Ağırlığı 17237 kg
Max Landing Weight 9577 kg
Usable Fuel Weight 9004 kg
Powerplant
Engine Manufacturer General Electric
Engine Model CF34-3B
Engine Quantity 2 Engines
Thrust 9220 lb
Exterior
Wingspan 64.3 ft
Fuselage 68.5 ft
Interior
Number of Passengers (Pax) 10 Yolcu
Cabin Width 8.17 ft
Cabin Length 28.4 ft
Cabin Height 6.08 ft
Total Cabin Volume 1146 cu ft
Total Baggage Volume 115 cu ft
Speed
Normal Cruise Range 459 kts
Long-Range Cruise Speed 425 kts
Maximum Cruise Speed 488 kts
Range Map
Optimum Cruise Range 4033 nm
Maximum Cruise Range 3718 nm
Seats Full Range 3756 nm
Ferry Range 4119 nm
Weight
Ramp Weight 48213 lb
Max Gross Takeoff Weight 48200 lb
Max Landing Weight 38000 lb
Usaful Fuel Weight 21113 lb
Usable Fuel Weight 19850 lb

Cabin Layout

Bombardier Challenger 604

Range Map

Performance on this page is based on the following assumptions: takeoff temperature, passengers, crew, cruise speed, airways allowance, annual winds, fuel reserve, and similar flight conditions. Please get in touch with us for details.
