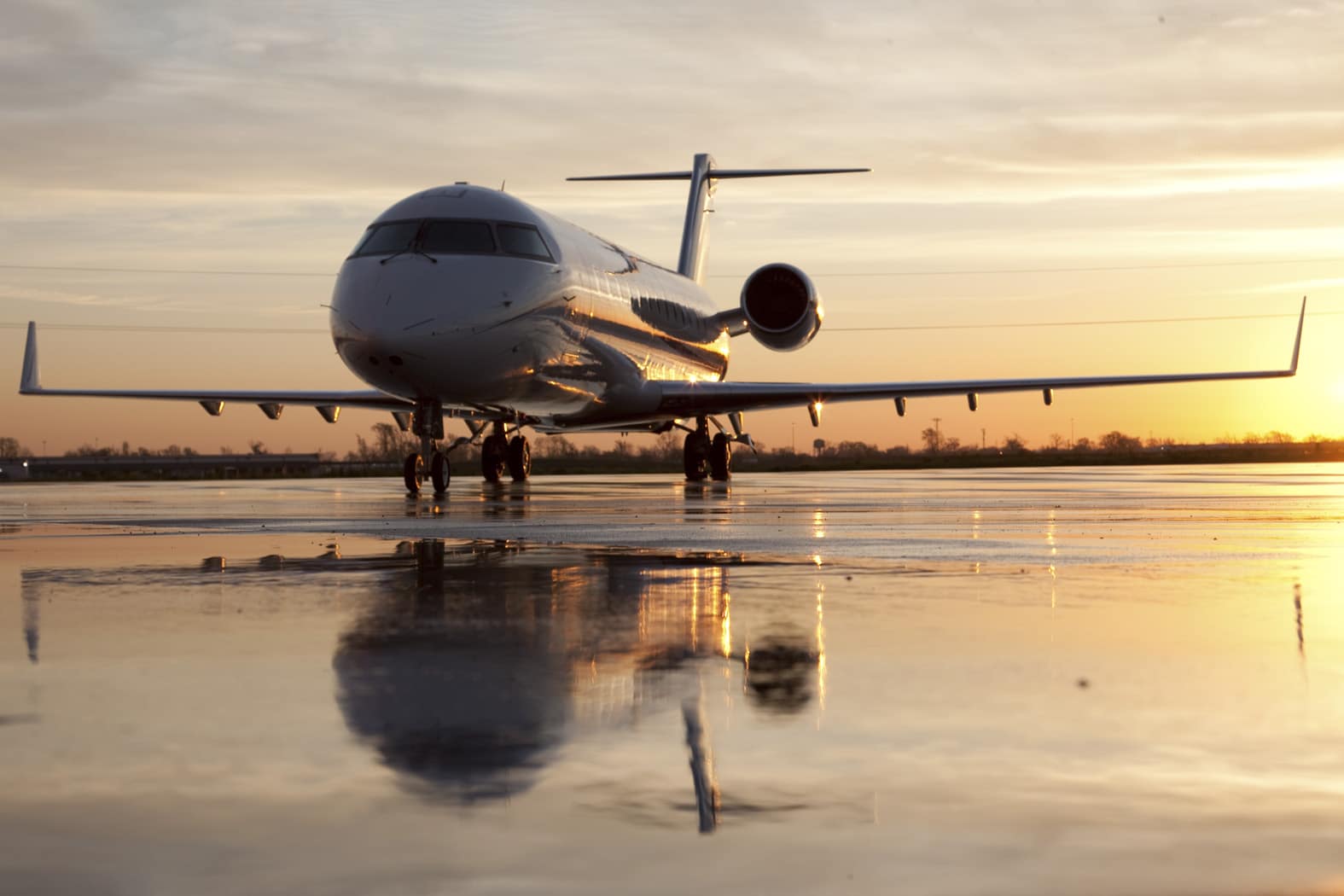

Bombardier Challenger 850
Designed for long-distance flights, the Bombardier Challenger 850 offers a combination of maximum speed, comfort, and range.
15 PAXPassengers
approx.
approx.
1.85 mCabin Height
approx.
approx.
6.43 cu mBaggage Volume
(max)
(max)
5456 kmRange
depending on weight and weather
depending on weight and weather
Bombardier Challenger 850
Specifications
Manufacturer
| Manufacturer | Bombardier |
| Production Years | 1996 - 2015 |
Powerplant
| Engine Manufacturer | General Electric |
| Engine Model | CF34-3B1 |
| Engine Quantity | 2 Engines |
| Thrust | 3959 kg |
Exterior
| Wingspan | 21.18 m |
| Fuselage | 26.76 m |
Interior
| Number of Passengers (Pax) | 15 Passengers |
| Cabin Width | 2.49 m |
| Cabin Length | 14.76 m |
| Cabin Height | 1.85 m |
| Total Cabin Volume | 55.61 cu m |
| Total Baggage Volume | 6.43 cu m |
Speed
| Normal Cruise Speed | 819 kph |
| Long-Range Cruise Speed | 787 kph |
| Maximum Cruise Speed | 850 kph |
Range Map
| Optimum Cruise Range | 5456 km |
| Maximum Cruise Range | 5134 km |
| Seats Full Range | 4549 km |
| Ferry Range | 5734 km |
Weight
| Ramp Weight | 24154 kg |
| Max Gross Takeoff Weight | 24041 kg |
| Azami İniş Ağırlığı | 21319 kg |
| Max Landing Weight | 8451 kg |
| Usable Fuel Weight | 8289 kg |
Powerplant
| Engine Manufacturer | General Electric |
| Engine Model | CF34-3B1 |
| Engine Quantity | 2 Engines |
| Thrust | 8729 lb |
Exterior
| Wingspan | 69.5 ft |
| Fuselage | 87.8 ft |
Interior
| Number of Passengers (Pax) | 15 Yolcu |
| Cabin Width | 8.17 ft |
| Cabin Length | 48.42 ft |
| Cabin Height | 6.08 ft |
| Total Cabin Volume | 1964 cu ft |
| Total Baggage Volume | 227 cu ft |
Speed
| Normal Cruise Range | 442 kts |
| Long-Range Cruise Speed | 425 kts |
| Maximum Cruise Speed | 459 kts |
Range Map
| Optimum Cruise Range | 2946 nm |
| Maximum Cruise Range | 2772 nm |
| Seats Full Range | 2456 nm |
| Ferry Range | 3096 nm |
Weight
| Ramp Weight | 53250 lb |
| Max Gross Takeoff Weight | 53000 lb |
| Max Landing Weight | 47000 lb |
| Usaful Fuel Weight | 18632 lb |
| Usable Fuel Weight | 18274 lb |
Cabin Layout
