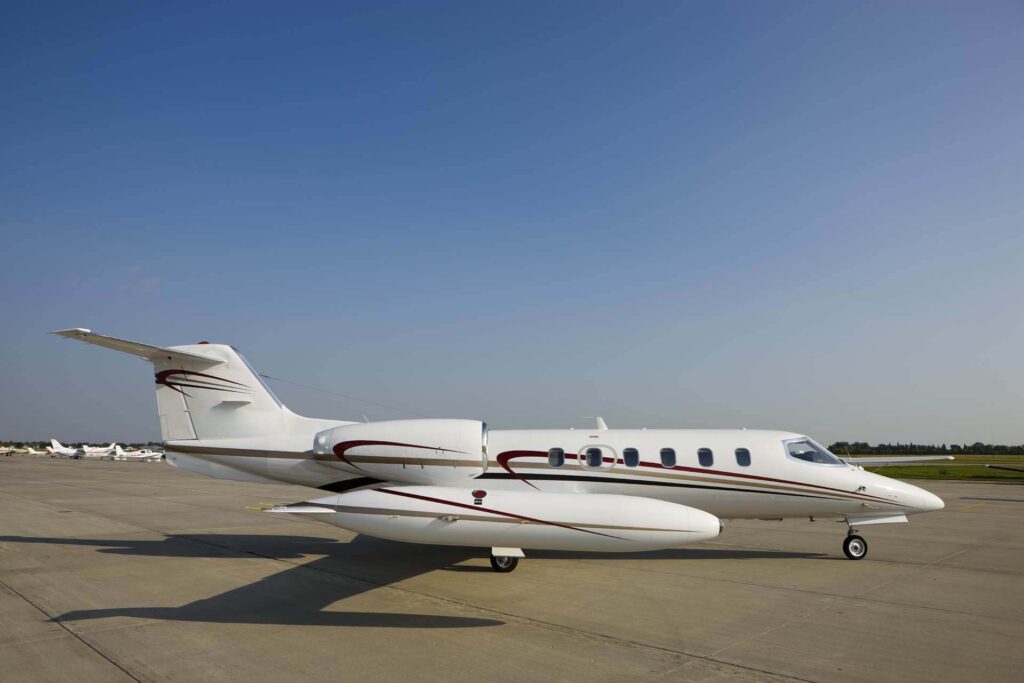

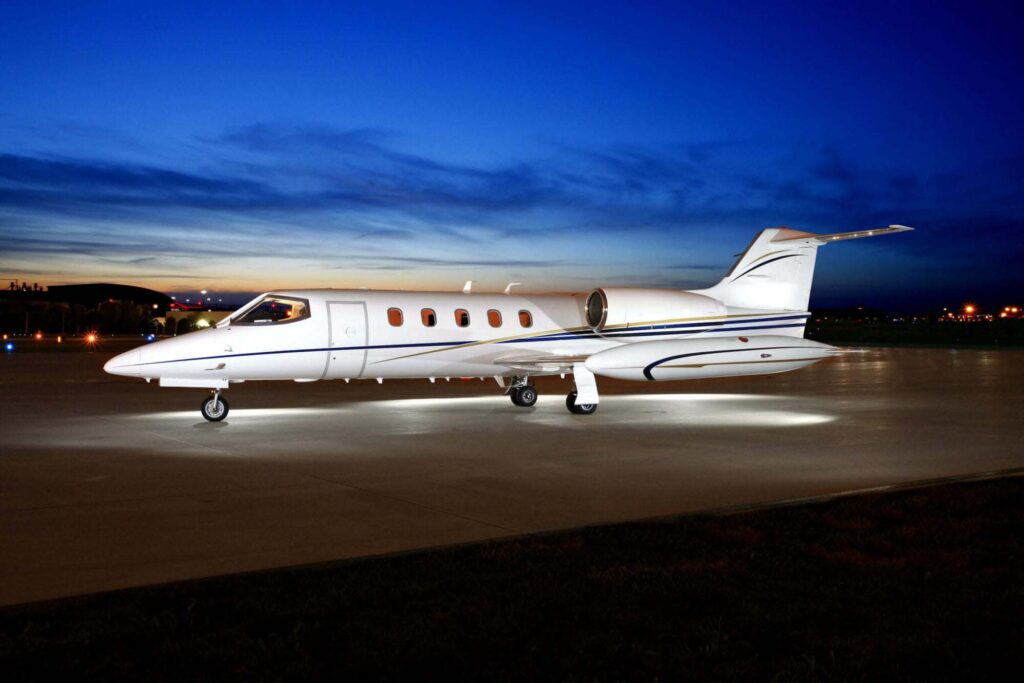

Bombardier Learjet 35A

Specifications

Manufacturer
Manufacturer Bombardier
Production Years 1976 - 1992
Powerplant
Engine Manufacturer Honeywell Engines
Engine Model TFE 731-2
Engine Quantity 2 Engines
Thrust 1588 kg
Exterior
Wingspan 12.04 m
Fuselage 14.84 m
Interior
Number of Passengers (Pax) 6 Passengers
Cabin Width 1.49 m
Cabin Length 3.93 m
Cabin Height 1.31 m
Total Cabin Volume 8.18 cu m
Total Baggage Volume 1.13 cu m
Speed
Normal Cruise Speed 807 kph
Long-Range Cruise Speed 785 kph
Maximum Cruise Speed 870 kph
Range Map
Optimum Cruise Range 3695 km
Maximum Cruise Range 3578 km
Seats Full Range 3574 km
Ferry Range 3936 km
Weight
Ramp Weight 8392 kg
Max Gross Takeoff Weight 8301 kg
Azami İniş Ağırlığı 6940 kg
Max Landing Weight 3715 kg
Usable Fuel Weight 2811 kg
Powerplant
Engine Manufacturer Honeywell Engines
Engine Model TFE 731-2
Engine Quantity 2 Engines
Thrust 3500 lb
Exterior
Wingspan 39.5 ft
Fuselage 48.7 ft
Interior
Number of Passengers (Pax) 6 Yolcu
Cabin Width 4.9 ft
Cabin Length 12.9 ft
Cabin Height 4.3 ft
Total Cabin Volume 289 cu ft
Total Baggage Volume 40 cu ft
Speed
Normal Cruise Range 436 kts
Long-Range Cruise Speed 424 kts
Maximum Cruise Speed 470 kts
Range Map
Optimum Cruise Range 1995 nm
Maximum Cruise Range 1932 nm
Seats Full Range 1930 nm
Ferry Range 2125 nm
Weight
Ramp Weight 18500 lb
Max Gross Takeoff Weight 18300 lb
Max Landing Weight 15300 lb
Usaful Fuel Weight 8190 lb
Usable Fuel Weight 6198 lb

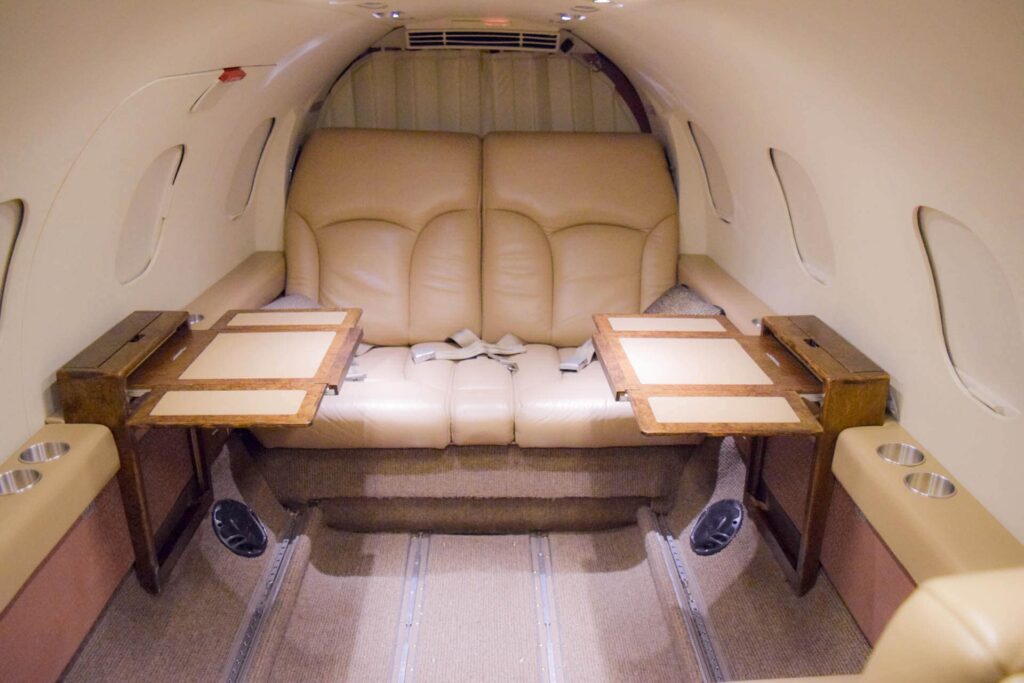

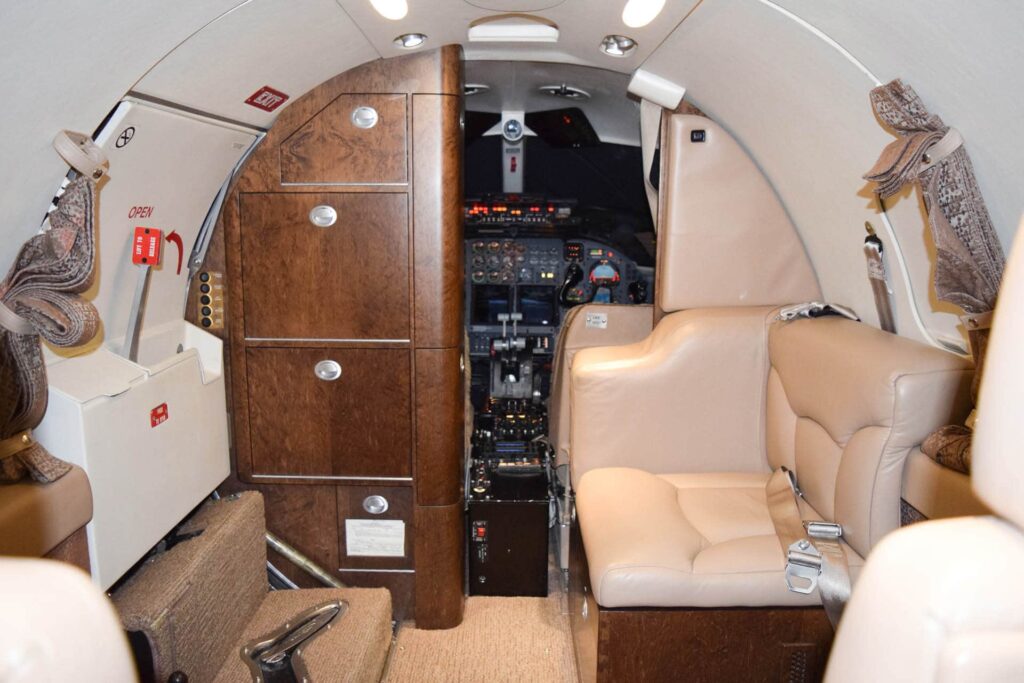

Cabin Layout

Bombardier Learjet 35A

Range Map

Bombardier Learjet 35A range maps will be here very shortly.For detailed information about Bombardier Learjet 35A, please contact us.
