Cessna Citation Mustang

Specifications

Manufacturer
Manufacturer Cessna
Production Years 2006 - 2017
Powerplant
Engine Manufacturer Pratt & Whitney Canada
Engine Model PW615F
Engine Quantity 2 Engines
Thrust 662 kg
Exterior
Wingspan 13.16 m
Fuselage 12.37 m

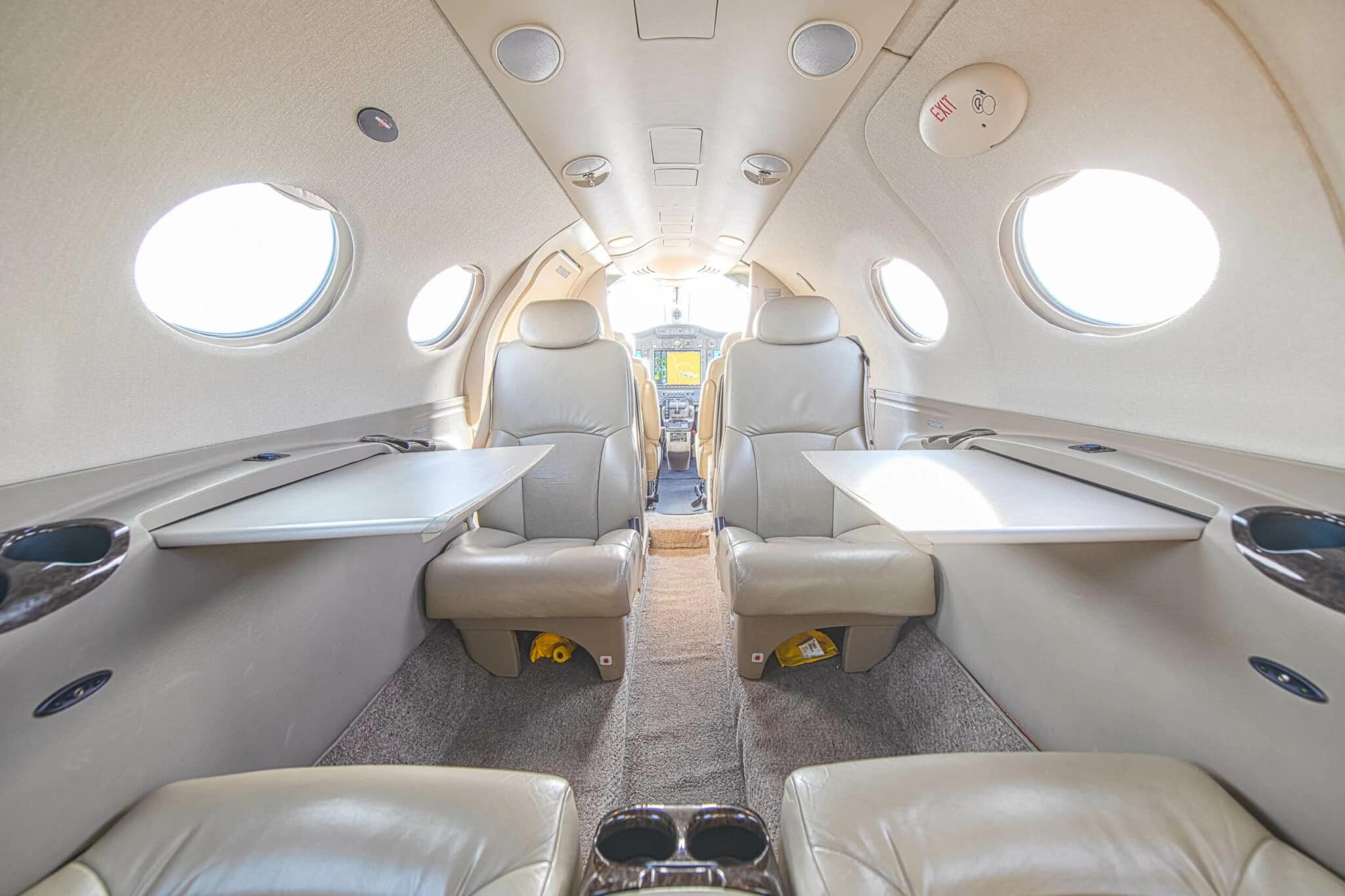

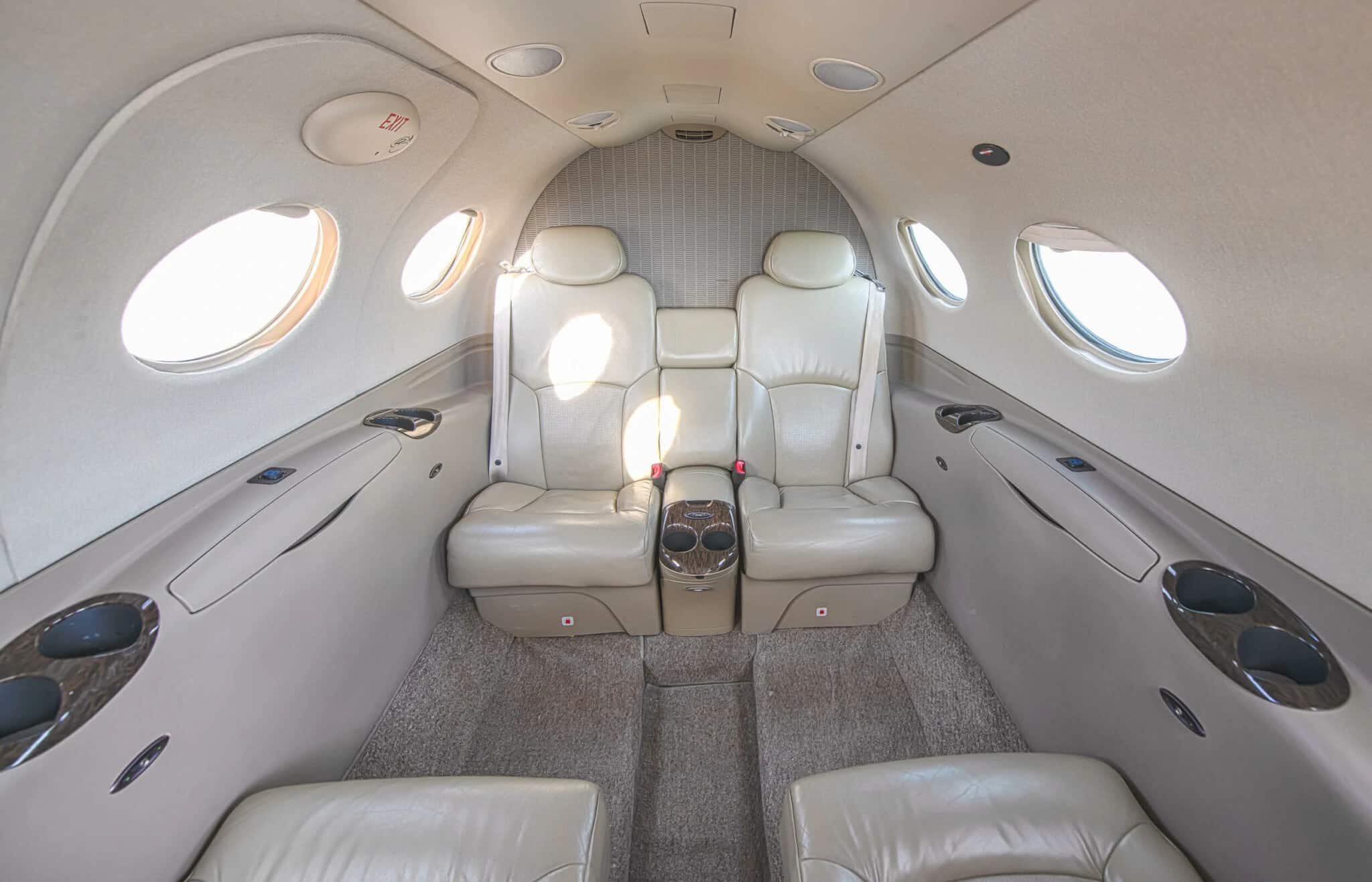

Interior
Number of Passengers (Pax) 4 Passengers
Cabin Width 1.40 m
Cabin Length 2.97 m
Cabin Height 1.37 m
Total Cabin Volume 4.62 cu m
Total Baggage Volume 1.78 cu m
Speed
Normal Cruise Speed 630 kph
Long-Range Cruise Speed 591 kph
Maximum Cruise Speed 630 kph
Range Map
Optimum Cruise Range 1482 km
Maximum Cruise Range 1463 km
Seats Full Range 1330 km
Ferry Range 1982 km
Weight
Ramp Weight 3960 kg
Max Gross Takeoff Weight 3921 kg
Azami İniş Ağırlığı 3629 kg
Max Landing Weight 1442 kg
Usable Fuel Weight 1170 kg
Powerplant
Engine Manufacturer Pratt & Whitney Canada
Engine Model PW615F
Engine Quantity 2 Engines
Thrust 1460 lb
Exterior
Wingspan 43.16 ft
Fuselage 40.58 ft
Interior
Number of Passengers (Pax) 4 Yolcu
Cabin Width 4.58 ft
Cabin Length 9.75 ft
Cabin Height 4.5 ft
Total Cabin Volume 163 cu ft
Total Baggage Volume 63 cu ft
Speed
Normal Cruise Range 340 kts
Long-Range Cruise Speed 319 kts
Maximum Cruise Speed 340 kts
Range Map
Optimum Cruise Range 800 nm
Maximum Cruise Range 790 nm
Seats Full Range 718 nm
Ferry Range 1070 nm
Weight
Ramp Weight 8730 lb
Max Gross Takeoff Weight 8645 lb
Max Landing Weight 8000 lb
Usaful Fuel Weight 3180 lb
Usable Fuel Weight 2580 lb

Cabin Layout

Cessna Citation Mustang

Range Map

Performance on this page is based on the following assumptions: takeoff temperature, passengers, crew, cruise speed, airways allowance, annual winds, fuel reserve, and similar flight conditions. Please get in touch with us for details.
