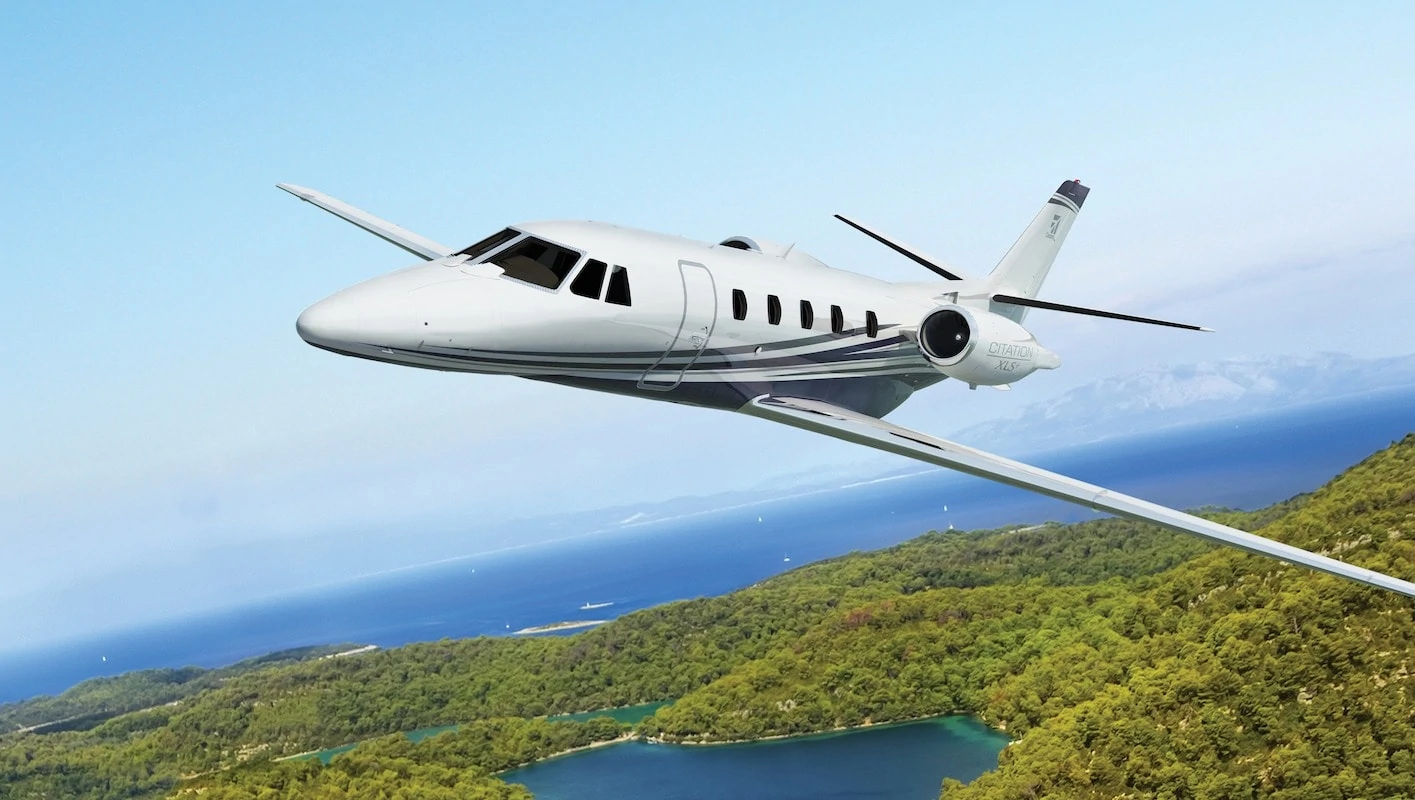

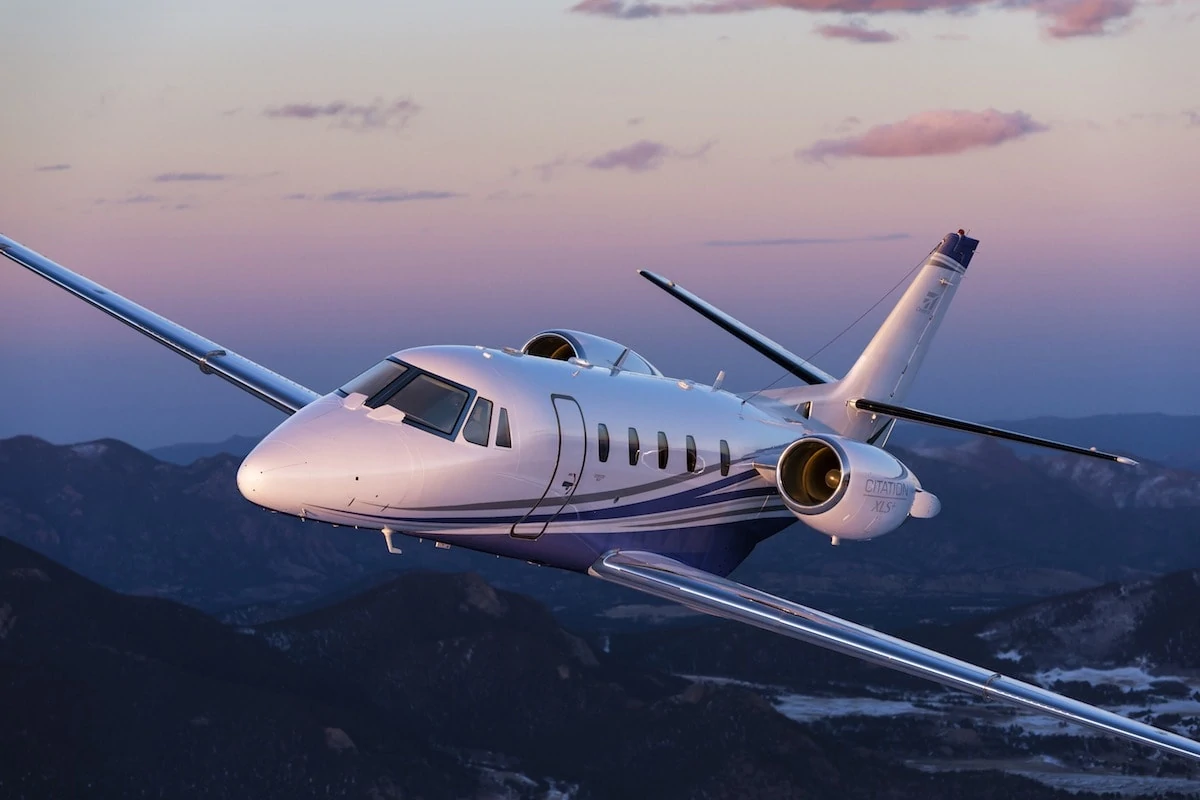

Cessna Citation XLS+
With maximum efficiency and high performance Cessna Citation XLS+, it offers a combination of speed and range for long-distance flights.
9 PAXPassengers
approx.
approx.
1.74 mCabin Height
approx.
approx.
2.55 cu mBaggage Volume
(max)
(max)
3511 kmRange
depending on weight and weather
depending on weight and weather
Cessna Citation XLS+
Specifications
Manufacturer
Manufacturer | Cessna |
Production Years | 2008 - Present |
Powerplant
Engine Manufacturer | Pratt & Whitney Canada |
Engine Model | PW545C |
Engine Quantity | 2 Engines |
Thrust | 1868 kg |
Exterior
Wingspan | 17.16 m |
Fuselage | 16.00 m |

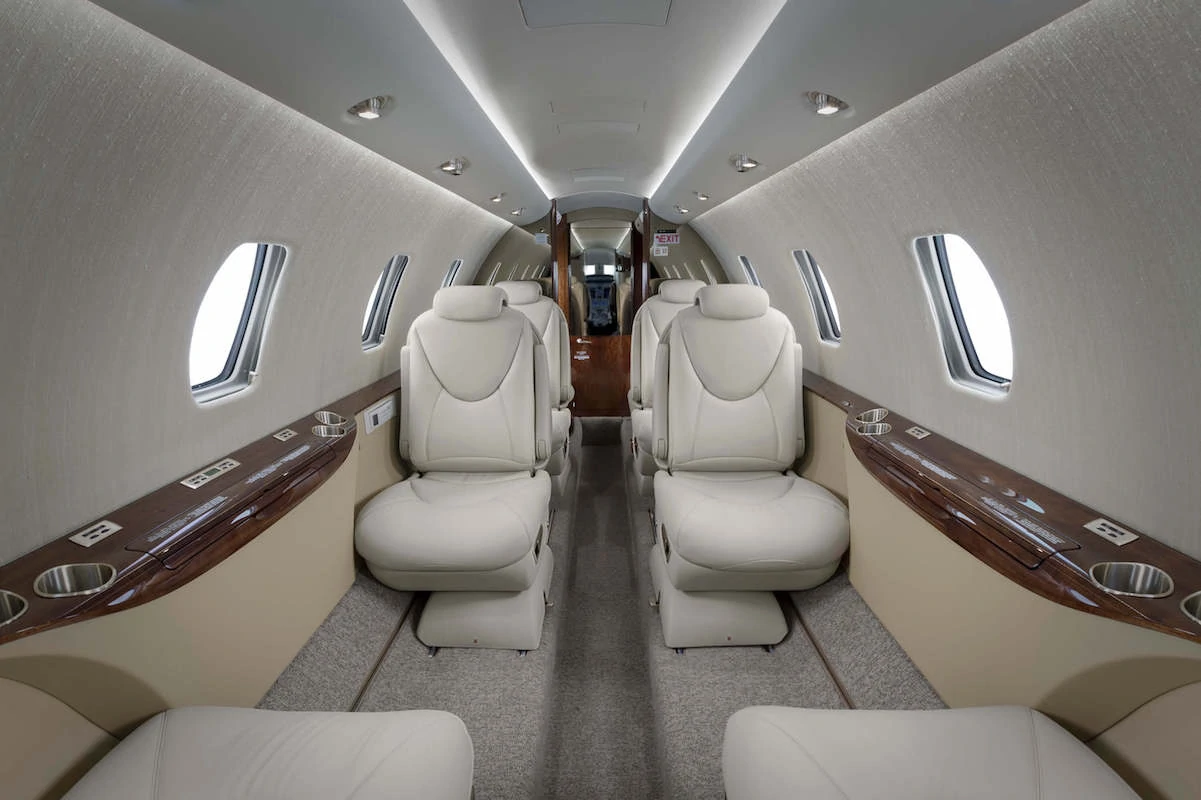

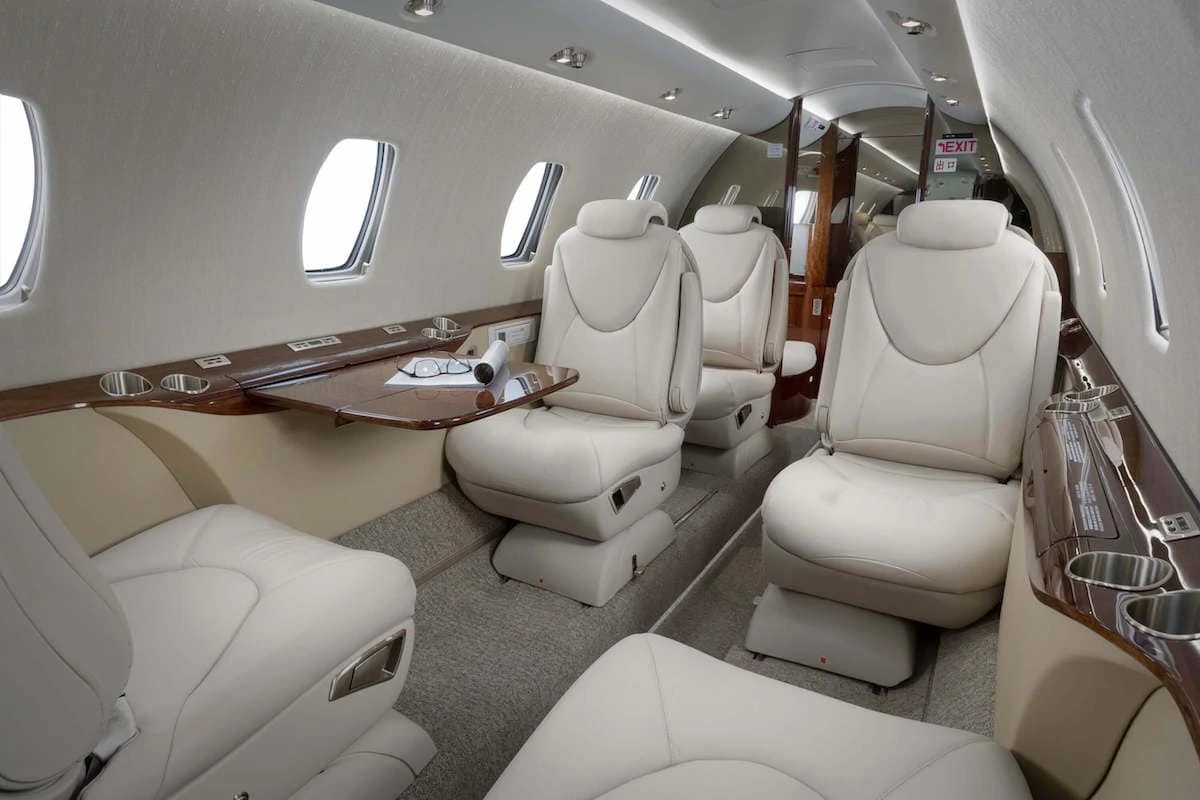

Interior
Number of Passengers (Pax) | 9 Passengers |
Cabin Width | 1.68 m |
Cabin Length | 5.64 m |
Cabin Height | 1.74 m |
Total Cabin Volume | 11.95 cu m |
Total Baggage Volume | 2.55 cu m |
Speed
Normal Cruise Speed | 815 kph |
Long-Range Cruise Speed | 691 kph |
Maximum Cruise Speed | 815 kph |
Range Map
Optimum Cruise Range | 3511 km |
Maximum Cruise Range | 3221 km |
Seats Full Range | 2830 km |
Ferry Range | 3660 km |
Weight
Ramp Weight | 9253 kg |
Max Gross Takeoff Weight | 9163 kg |
Azami İniş Ağırlığı | 8482 kg |
Max Landing Weight | 3447 kg |
Usable Fuel Weight | 3057 kg |
Powerplant
Engine Manufacturer | Pratt & Whitney Canada |
Engine Model | PW545C |
Engine Quantity | 2 Engines |
Thrust | 4119 lb |
Exterior
Wingspan | 56.3 ft |
Fuselage | 52.5 ft |
Interior
Number of Passengers (Pax) | 9 Yolcu |
Cabin Width | 5.5 ft |
Cabin Length | 18.5 ft |
Cabin Height | 5.7 ft |
Total Cabin Volume | 422 cu ft |
Total Baggage Volume | 90 cu ft |
Speed
Normal Cruise Range | 440 kts |
Long-Range Cruise Speed | 373 kts |
Maximum Cruise Speed | 440 kts |
Range Map
Optimum Cruise Range | 1896 nm |
Maximum Cruise Range | 1739 nm |
Seats Full Range | 1528 nm |
Ferry Range | 1976 nm |
Weight
Ramp Weight | 20400 lb |
Max Gross Takeoff Weight | 20200 lb |
Max Landing Weight | 18700 lb |
Usaful Fuel Weight | 7600 lb |
Usable Fuel Weight | 6740 lb |
Cabin Layout
