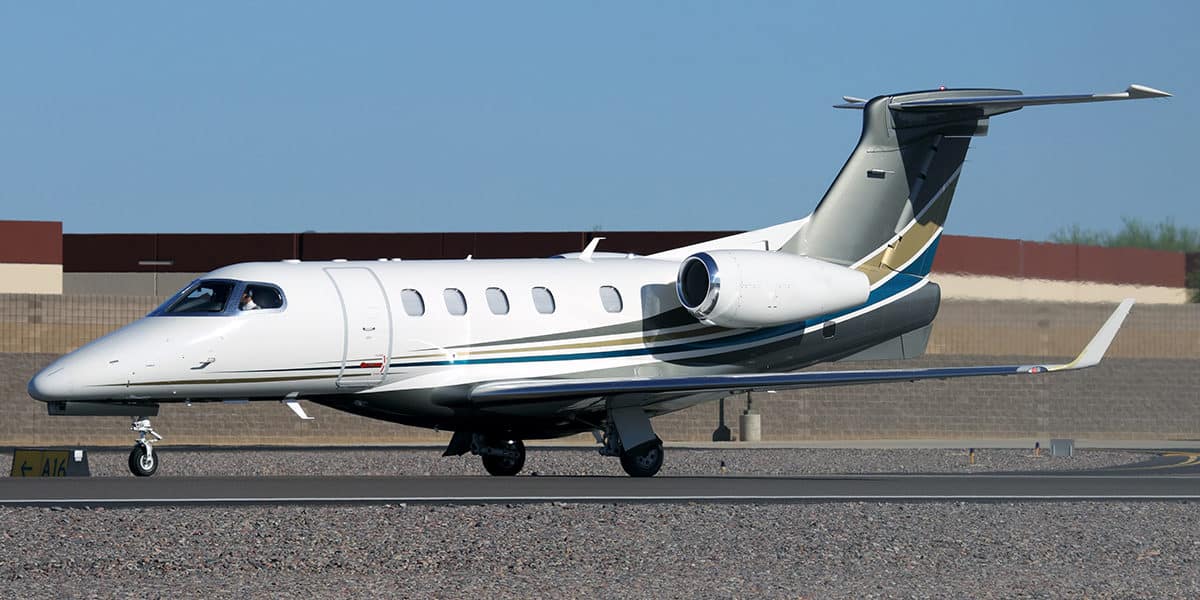

Embraer Phenom 300

Specifications

Manufacturer
Manufacturer Embraer
Production Years 2008 - 2020
Powerplant
Engine Manufacturer Pratt & Whitney Canada
Engine Model PW535E
Engine Quantity 2 Engines
Thrust 1524 kg
Exterior
Wingspan 15.91 m
Fuselage 15.64 m
Interior
Number of Passengers (Pax) 7 Passengers
Cabin Width 1.55 m
Cabin Length 5.23 m
Cabin Height 1.50 m
Total Cabin Volume 9.17 cu m
Total Baggage Volume 2.41 cu m
Speed
Normal Cruise Speed 796 kph
Long-Range Cruise Speed 709 kph
Maximum Cruise Speed 839 kph
Range Map
Optimum Cruise Range 3656 km
Maximum Cruise Range 3189 km
Seats Full Range 3354 km
Ferry Range 3847 km
Weight
Ramp Weight 8390 kg
Max Gross Takeoff Weight 8340 kg
Azami İniş Ağırlığı 7730 kg
Max Landing Weight 3045 kg
Usable Fuel Weight 2428 kg
Powerplant
Engine Manufacturer Pratt & Whitney Canada
Engine Model PW535E
Engine Quantity 2 Engines
Thrust 3360 lb
Exterior
Wingspan 52.2 ft
Fuselage 51.3 ft
Interior
Number of Passengers (Pax) 7 Yolcu
Cabin Width 5.08 ft
Cabin Length 17.17 ft
Cabin Height 4.92 ft
Total Cabin Volume 324 cu ft
Total Baggage Volume 85 cu ft
Speed
Normal Cruise Range 430 kts
Long-Range Cruise Speed 383 kts
Maximum Cruise Speed 453 kts
Range Map
Optimum Cruise Range 1974 nm
Maximum Cruise Range 1722 nm
Seats Full Range 1811 nm
Ferry Range 2077 nm
Weight

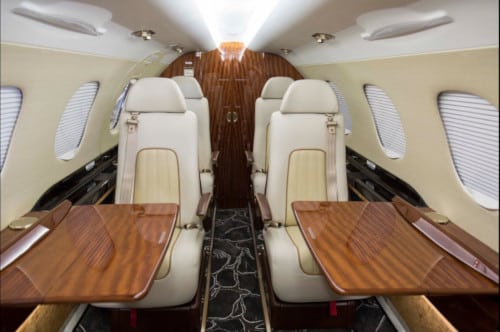

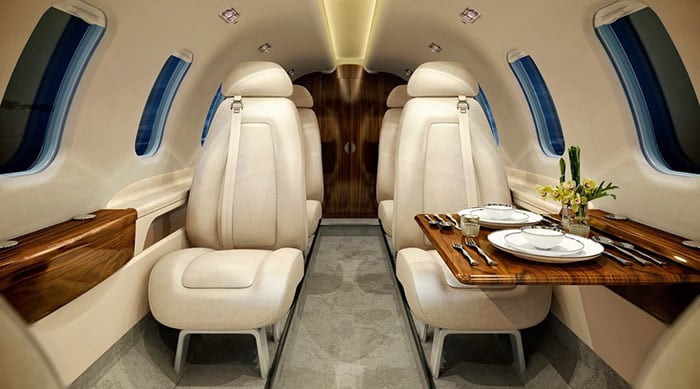

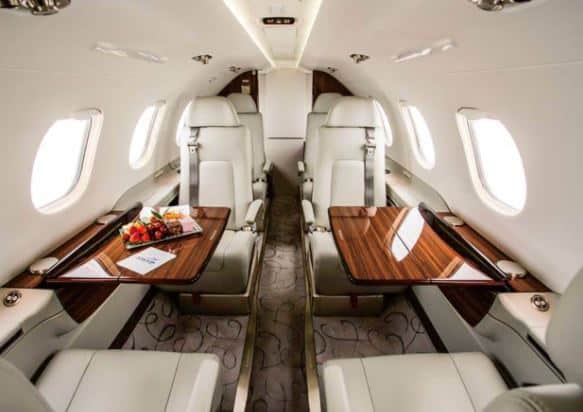

Cabin Layout

Embraer Phenom 300

Range Map

Performance on this page is based on the following assumptions: takeoff temperature, passengers, crew, cruise speed, airways allowance, annual winds, fuel reserve, and similar flight conditions. Please get in touch with us for details.

Have you taken a look at the popular charter destinations?

An affordable private flight is possible with empty legs!

  • Previous AircraftEmbraer Phenom 300E

  • Next AircraftCessna Citation XLS+

Ramp Weight 18497 lb
Max Gross Takeoff Weight 18387 lb
Max Landing Weight 17042 lb
Usaful Fuel Weight 6714 lb
Usable Fuel Weight 5353 lb
